Diagram 50/10 (Tracks 113-126)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions

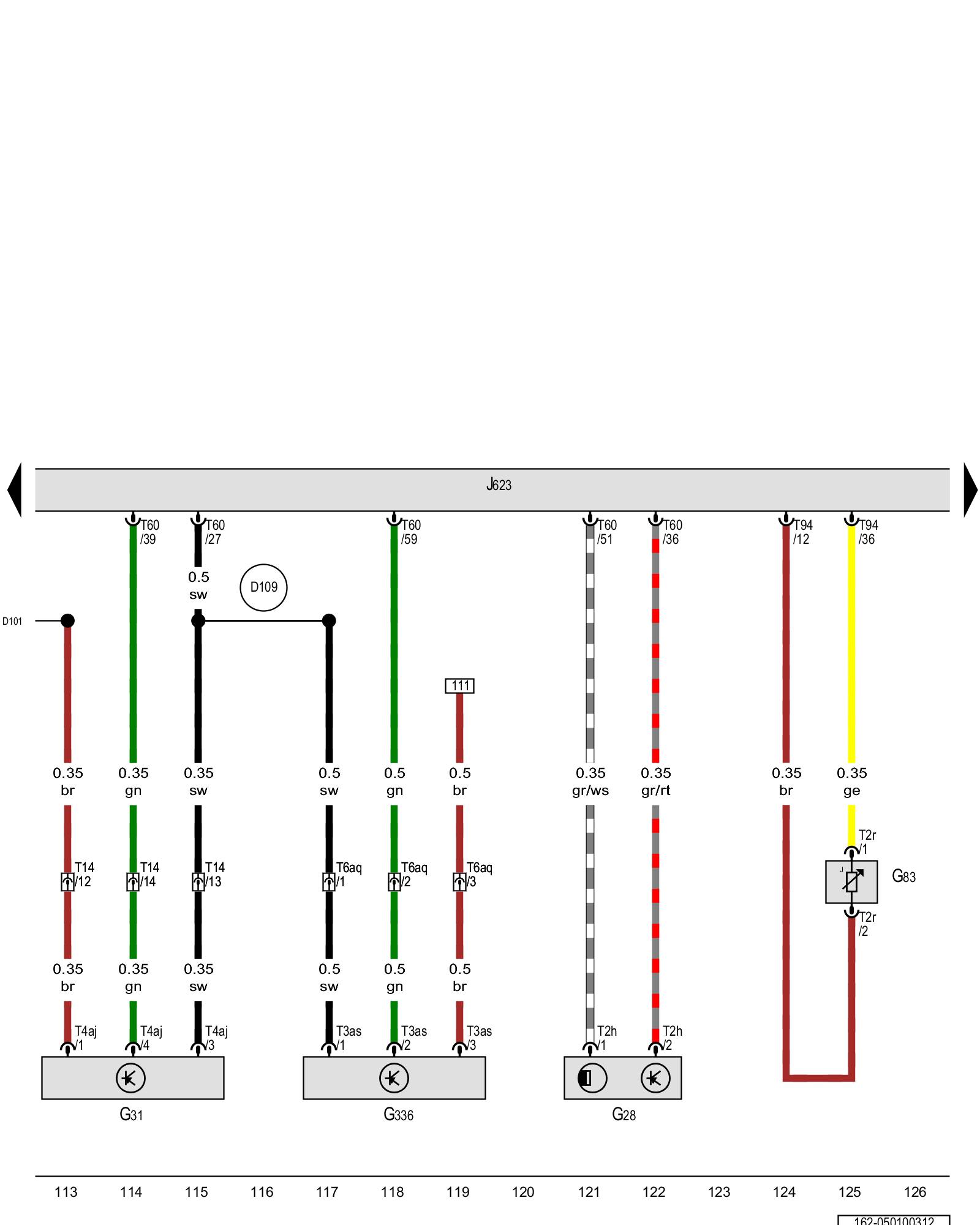

Engine speed sensor, Charge air pressure sensor, Engine coolant temperature sensor on radiator outlet, Engine control module





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

G28 - Engine speed sensor Locations [1][2]Diagrams

G31 - Charge air pressure sensor Locations Charge Air Pressure Sensor -G31- / Intake Air Temperature Sensor -G42-

G83 - Engine coolant temperature sensor on radiator outlet Locations Engine Coolant Temperature Sensor On Radiator -G83-

G336 - Intake manifold runner position sensor 2.0L BPY, CCTA and CBFA Overview [1][2]Diagrams

J623 - Engine control module Overview Of Control Modules

T2h - Double connector

T2r - Double connector

T3as - 3-pin connector

T4aj - 4-pin connector

T6aq - 6-pin connector

T14 - 14-pin connector Overview Of Connector Stations and Connectors

T60 - 60-pin connector

T94 - 94-pin connector

(D101) - Connection 1 (in engine compartment wiring harness)

(D109) - Connection 7 (in engine compartment wiring harness)

Previous Diagram 50/9 (Tracks 99-112)

Next Diagram 50/11 (Tracks 127-140)
