Fuses (SB) On Electronics Box in Engine Compartment, Left

Fuses

Fuses (SB) on Electronics Box in Engine Compartment, Left







- Fuse colors, for ATO flat fuse: (SB1 through SB20)
40 A - orange
30 A - light-green
25 A - natural (white)
20 A - yellow
15 A - light-blue
10 A - red
7.5 A - brown
5 A - light-brown
3 A - purple

- Fuse colors, for the J-Case fuse: (SB21 through SB32)
50 A - red
40 A - green
30 A - pink

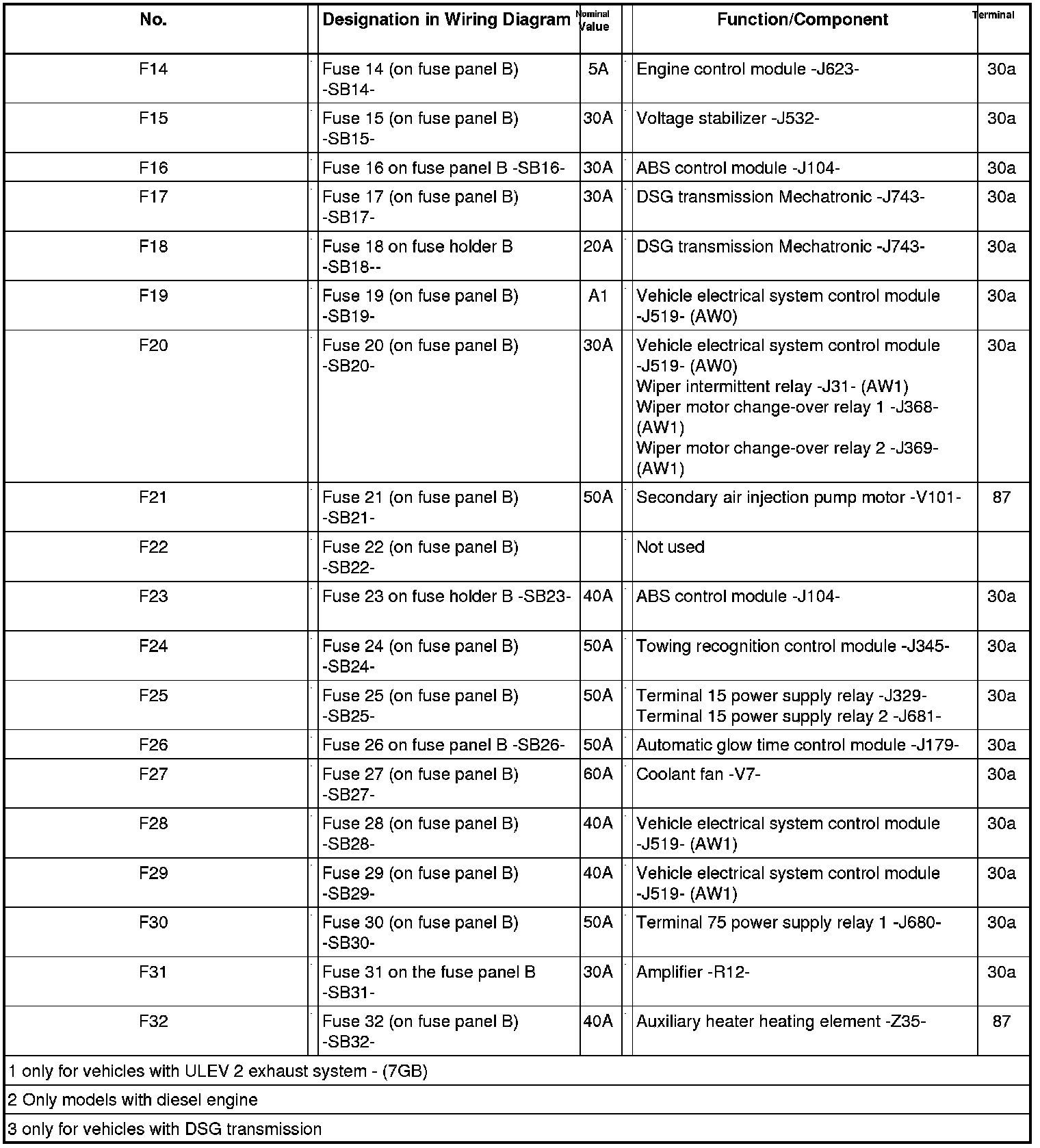

E-box fuse arrangements (SB), from MY 2011

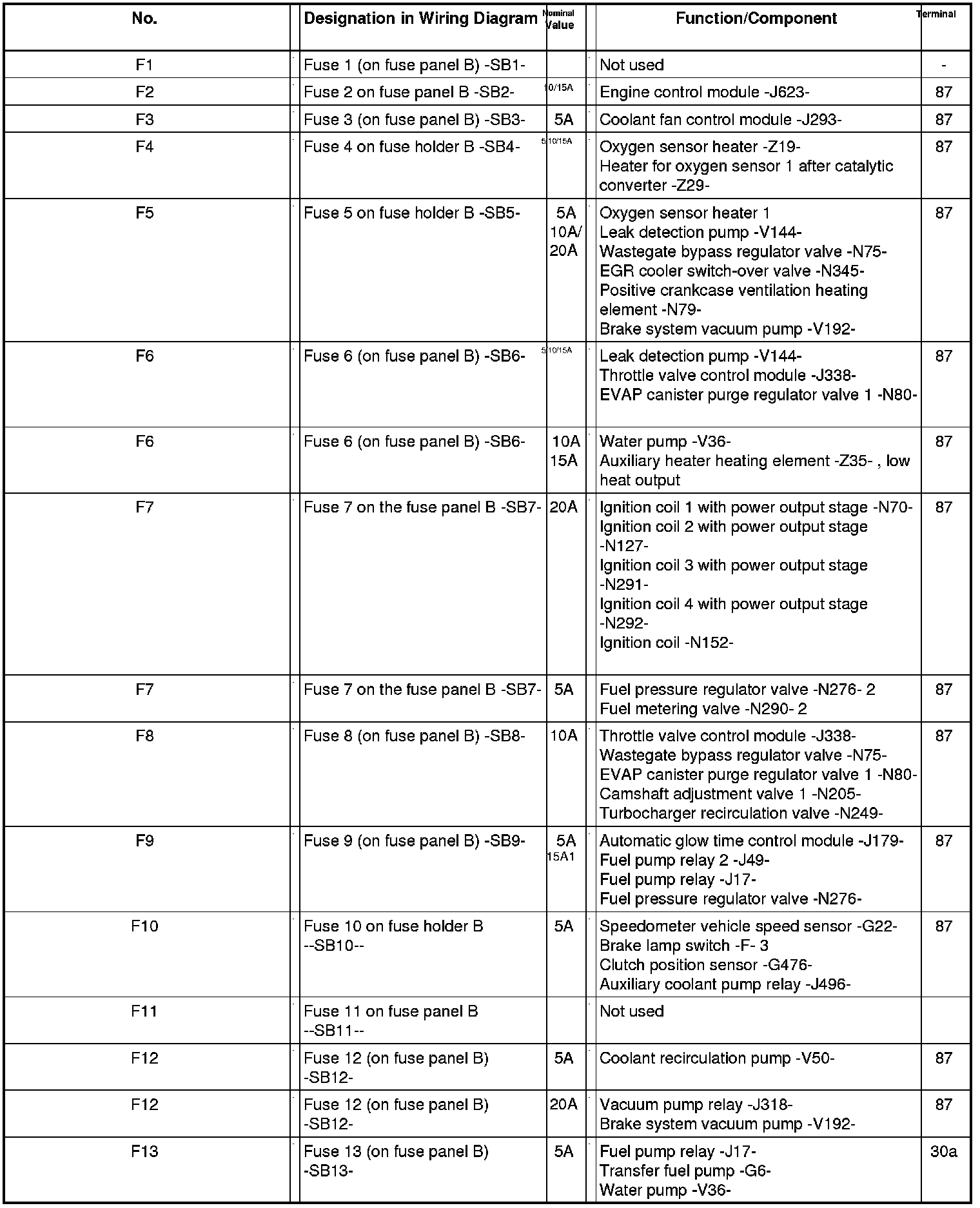

E-box fuse arrangements (SB), from MY 2012













E-box fuse arrangements (SB), from MY 2013
