Component Location of fuses (SA) on the Electronics Box, with the hybrid System

Fuses

Component Location of fuses (SA) on the Electronics Box, with the hybrid system


Only for models with high-voltage system (hybrid).





-

Fuse Colors
200 A - purple
150 A - gray
125 A - pink
100 A - blue
80 A - white
70 A - brown
60 A - yellow
50 A - red
40 A - green

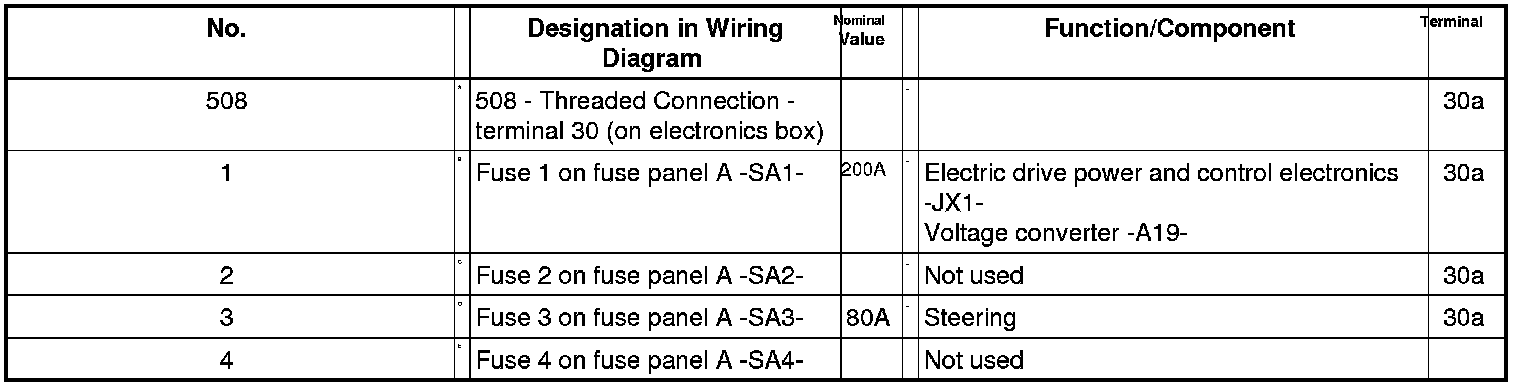

Fuse assignment for E-box with hybrid system

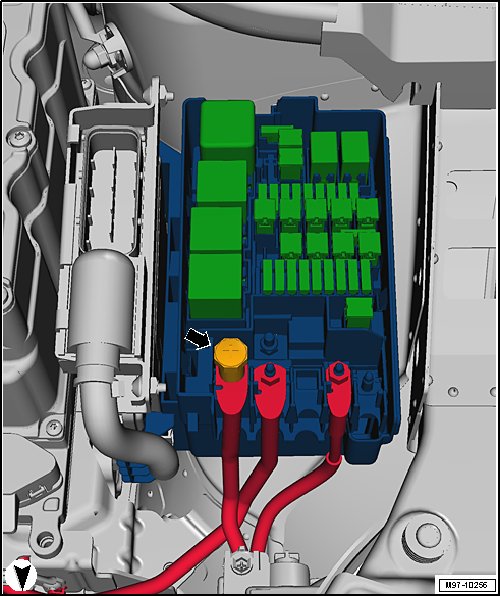

Remote start connection -TV32-


Only for models with high-voltage system (hybrid).
Component location: - on the E-Box





1 Remote start connection -TV32-arrow-
