License Plate Lamp: Service and Repair

License Plate Lamps


• Turn off the ignition and all electrical consumers.

• Remove the key.

Removing

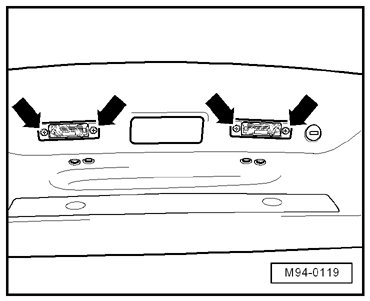

- Remove the bolts - arrows -.






- Remove the Left License Plate Lamp (X4).

• The LED cannot be replaced in LED license plate lamps. The complete license plate lamp must be replaced if it gets damaged.

Bulb: tubular bulb C 12 V/5 W

Installing

Install in reverse order of removal, noting the following:

- Tighten the screws to 2 Nm.
