Front Side Marker Lamp Bulb

Front Side Marker Lamp Bulb

• It is not necessary to remove the headlamp when replacing the headlamp bulb.

• The following illustrations show changing a bulb on the left headlamp.


• Turn off the ignition and all electrical consumers.

• Remove the key.

Removing

- Remove the cap - 1 -.

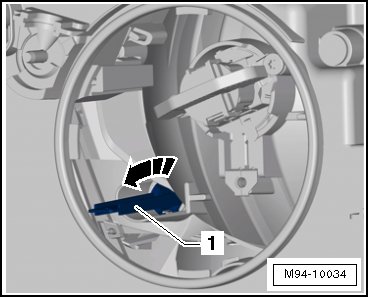

- Turn the bulb socket - 1 - in - direction of arrow - and remove from the headlamp together with the left front side marker lamp bulb.

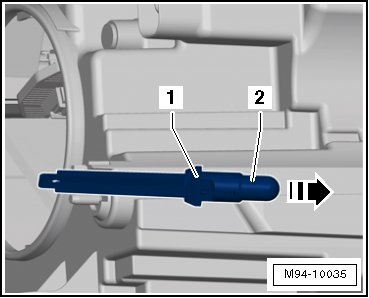

- Remove the left front side marker lamp bulb - 2 - from the bulb socket - 12 - in - direction of arrow -






Bulb: 12 V/3 W

Installing


• Do not touch the glass of the bulb during installation. Fingers will leave traces of grease on the glass which, when the light is switched on, will evaporate and cloud the glass.

• During installation, ensure proper seating of the cap. Water getting in the headlamp will cause damage.

Install in reverse order of removal, noting the following:

- Check headlamp for functions.
