Rear Interior Lamp Bulb

Rear Interior Lamp Bulb

Removing

- Remove the Rear Interior Lamp (W43). Refer to => [ Rear Interior Lamp (W43) ] Rear Interior Lamp (W43).

- Open the tabs - arrows - on the lens - 1 - and remove it from the rear interior lamp.

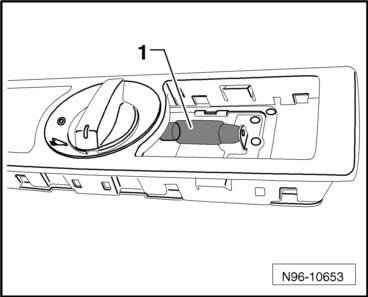

- Remove the bulb - 1 - from the bulb socket - arrows -.






Bulbs: Tubular bulb 12 V/5 W


• Do not touch the glass of the bulb during installation. Fingers will leave traces of grease on the glass which, when the light is switched on, will evaporate and cloud the glass.

Installing

Install in reverse order of removal.
