Rear Interior Lamp (W43)

Rear Interior Lamp (W43)

Special tools, testers and auxiliary items required

• Trim Removal Wedge (VAS 3409)

The Rear Interior Lamp consists of:

• Rear Interior Lamp (W43)

• Left Rear Reading Lamp (W11)

• Right Rear Reading Lamp (W12)

The components cannot be replaced separately.

Replace the bulb, refer to => [ Rear Interior Lamp Bulb ] Rear Interior Lamp Bulb.


• Turn off the ignition and all electrical consumers.

• Remove the key.

• When removing and installing components in visible area (switches, covers, trim, etc.), cover by taping the areas at which a prying tool ( (VAS 3409) , screwdriver) will be positioned using commercially available adhesive tape.

Removing

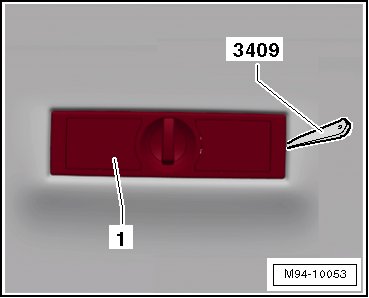

- Remove the rear interior lamp - 1 - from the roof trim panel using the (VAS 3409).






- Disconnect the connector - arrow -.






- Remove the rear interior lamp.

Installing

Install in reverse order of removal.
