Connector Locations

Instrument Cluster, Back Side

High Version





• Do not disassemble instrument cluster. In the event of malfunctions, replace complete instrument cluster.

1. Warning buzzer

2. 32-pin connector

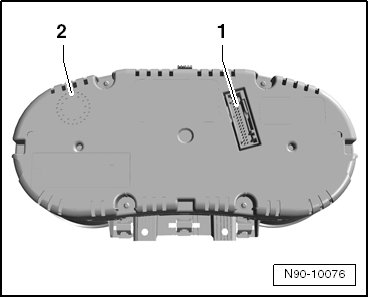

Low Version





• Do not disassemble instrument cluster. In the event of malfunctions, replace complete instrument cluster.

1. 32-pin connector

2. Warning buzzer
