Gasoline

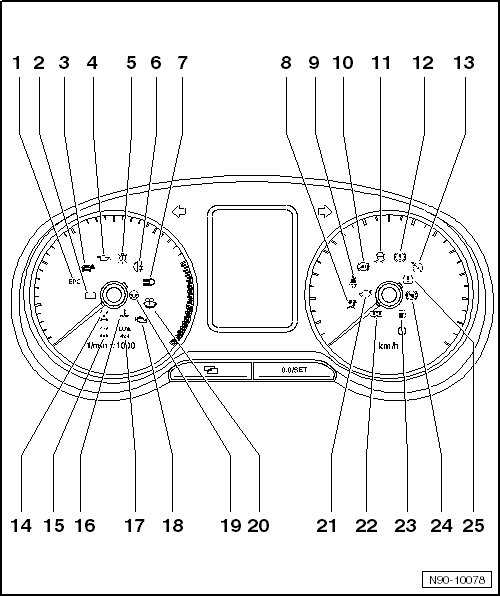

Indicator Lamp Symbols, Low Version

• Different instrument clusters are used, depending on vehicle equipment. Therefore, the arrangement of the control lamps may deviate from the illustration.






1 Warning lamp for Electronic Power Control (EPC) (K132)

2 Generator (GEN) Warning Lamp (K2)

3 Fuel Filler Lid Lock Warning Lamp (K201)

4 Oil Pressure Warning Lamp (K3)

5 Lamp Failure Indicator Lamp (K170)

6 Rear Fog Lamp Indicator Lamp (K13)

7 High Beam Indicator Lamp (K1)

8 Airbag Malfunction Indicator Lamp (MIL) (K75)

9 Safety Belt Warning Lamp (K19)

10 ABS Warning Lamp (K47)

11 ASR/ESP Control Lamp (K155)

12 Brake System Indicator Light (K118)

13 Cruise Control Indicator Lamp (K31)

14 Not assigned

15 Not assigned

16 Engine Coolant Level (ECL) Warning Lamp (K36)

17 Not assigned

18 Malfunction Indicator Lamp (MIL) (K83)

19 Electro-mechanical Power Steering Indicator Lamp (K161)

20 Low Windshield Washer Fluid Level Indicator Lamp (K37)

21 Rear Lid Open Indicator Lamp (K127)

22 Door Ajar Indicator Lamp (K166)

23 Low Fuel Level Warning Lamp (K16)

24 Shift Lock Indicator lamp (K169)

• Only on vehicles with automatic transmissions.

25 Tire Pressure Monitoring Display Indicator Lamp (K220)
