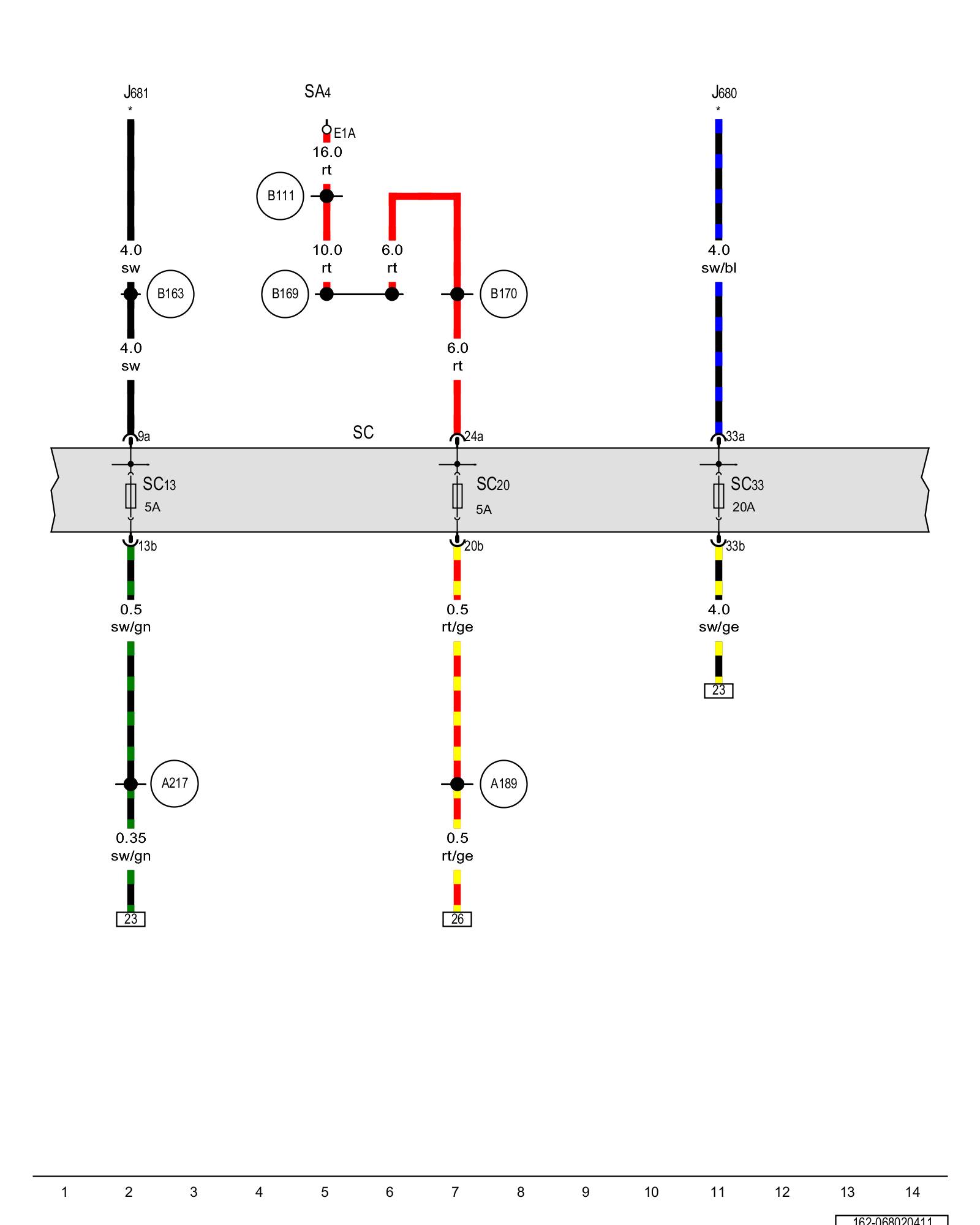

Diagram 68/2 (Tracks 1-14)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Fuse 4 (on fuse panel A), Fuse panel C





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

J680 - Terminal 75 power supply relay 1

J681 - Terminal 15 power supply relay 2

SA4 - Fuse 4 (on fuse panel A) Overview of Fuses (SA), (SB), (SC)

SC - Fuse panel C Overview of Fuses (SA), (SB), (SC)

SC13 - Fuse 13 (on fuse panel C) Overview of Fuses (SA), (SB), (SC)

SC20 - Fuse 20 (on fuse panel C) Overview of Fuses (SA), (SB), (SC)

SC33 - Fuse 33 (on fuse panel C) Overview of Fuses (SA), (SB), (SC)

T1 - Single connector

T9x - 9-pin connector

(A189) - Positive connection 5 (30a) (in instrument panel wiring harness)

(A217) - Positive connection 8 (15a) (in instrument panel wiring harness)

(B111) - Positive connection 1 (30a) (in interior wiring harness)

(B163) - Positive connection 1 (15) (in interior wiring harness)

(B169) - Positive connection 1 (30) (in interior wiring harness)

(B170) - Positive connection 2 (30) (in interior wiring harness)

* - Refer to applicable standard equipment wiring diagram

Next Diagram 68/3 (Tracks 15-28)
