Air Distribution Door Adjuster

Air Distribution Door Adjuster

Removing

- Remove instrument panel.

- Unclip flexible shaft from adapter for controls.

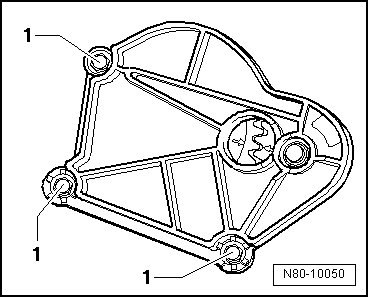

- Unscrew bolts - 1 - and remove adjusting unit for air distribution doors.

Installing






- The arrows on the gears must align.

- Position adjusting unit for air distribution doors and tighten bolts - 1 -.

• After installing, function of air distribution doors must be checked.
