Right Temperature Door Motor -V159- and Right Temperature Door Potentiometer / Actuator -G221-






Climate/ Climatronic Systems - Connector Views

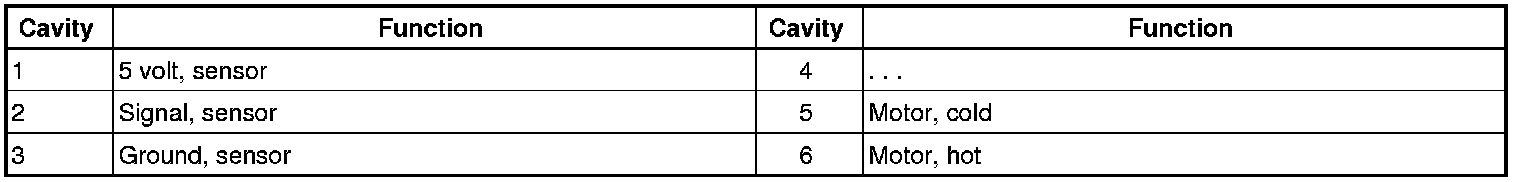

Right temperature door motor -V159- and Right temperature door potentiometer/actuator -G221-



Climatronic
