Defroster Door Motor -V107- and Defroster Door Motor Position Sensor -G135-

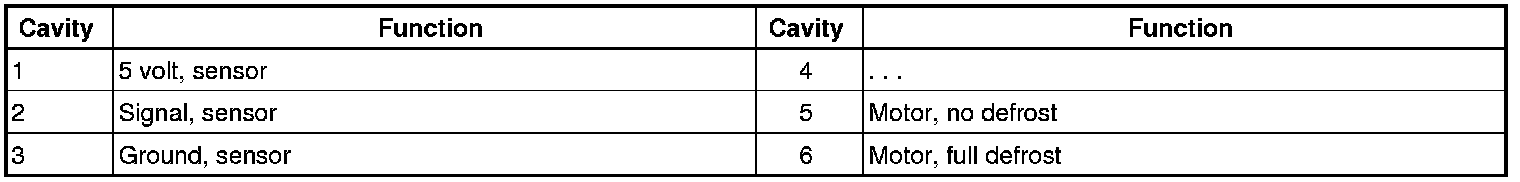

Climate/ Climatronic Systems - Connector Views

Defroster door motor -V107- and Defroster door motor position sensor -G135-



Climatronic
