Diagram 57/9 (Tracks 99-112)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions

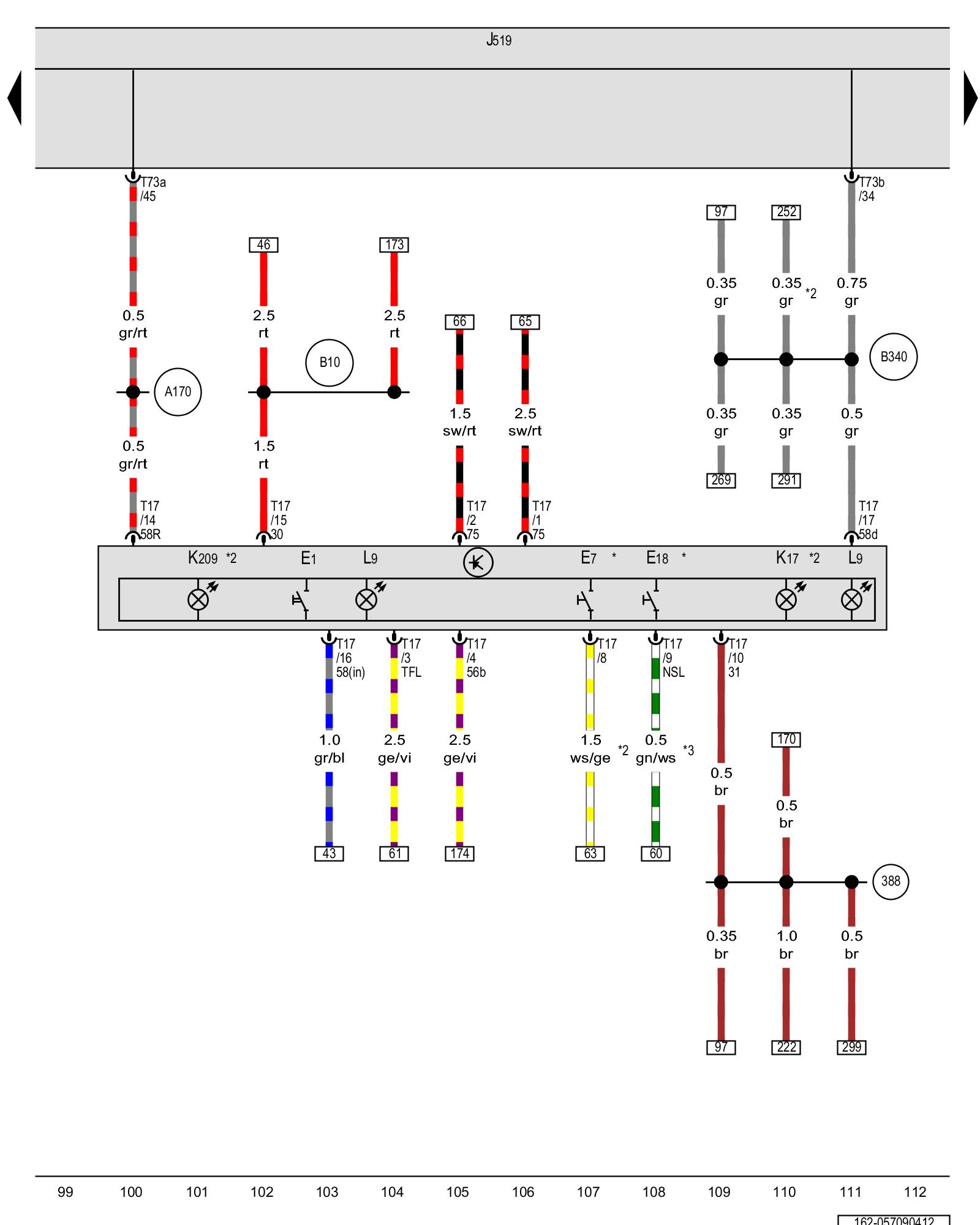

Light switch, Fog lamp switch, Rear fog lamp switch, Vehicle electrical system control module, Fog lamp indicator lamp, Automatic light control indicator lamp





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

E1 - Light switch

E7 - Fog lamp switch

E18 - Rear fog lamp switch

J519 - Vehicle electrical system control module Overview Of Control Modules

K17 - Fog lamp indicator lamp

K209 - Automatic light control indicator lamp

L9 - Headlamp switch illumination bulb

T17 - 17-pin connector

T73a - 73-pin connector Overview Of Control Modules

T73b - 73-pin connector Overview Of Control Modules

(388) - Ground connection 23 (in main wiring harness)

(A170) - Connection 58R (in instrument panel wiring harness) 2

(B10) - Positive connection (30) (in light switch wiring harness)

(B340) - Connection 58d (in main wiring harness) 1

* - If available

*2 - Depending on equipment

*3 - Only for vehicles with rear fog lamps
