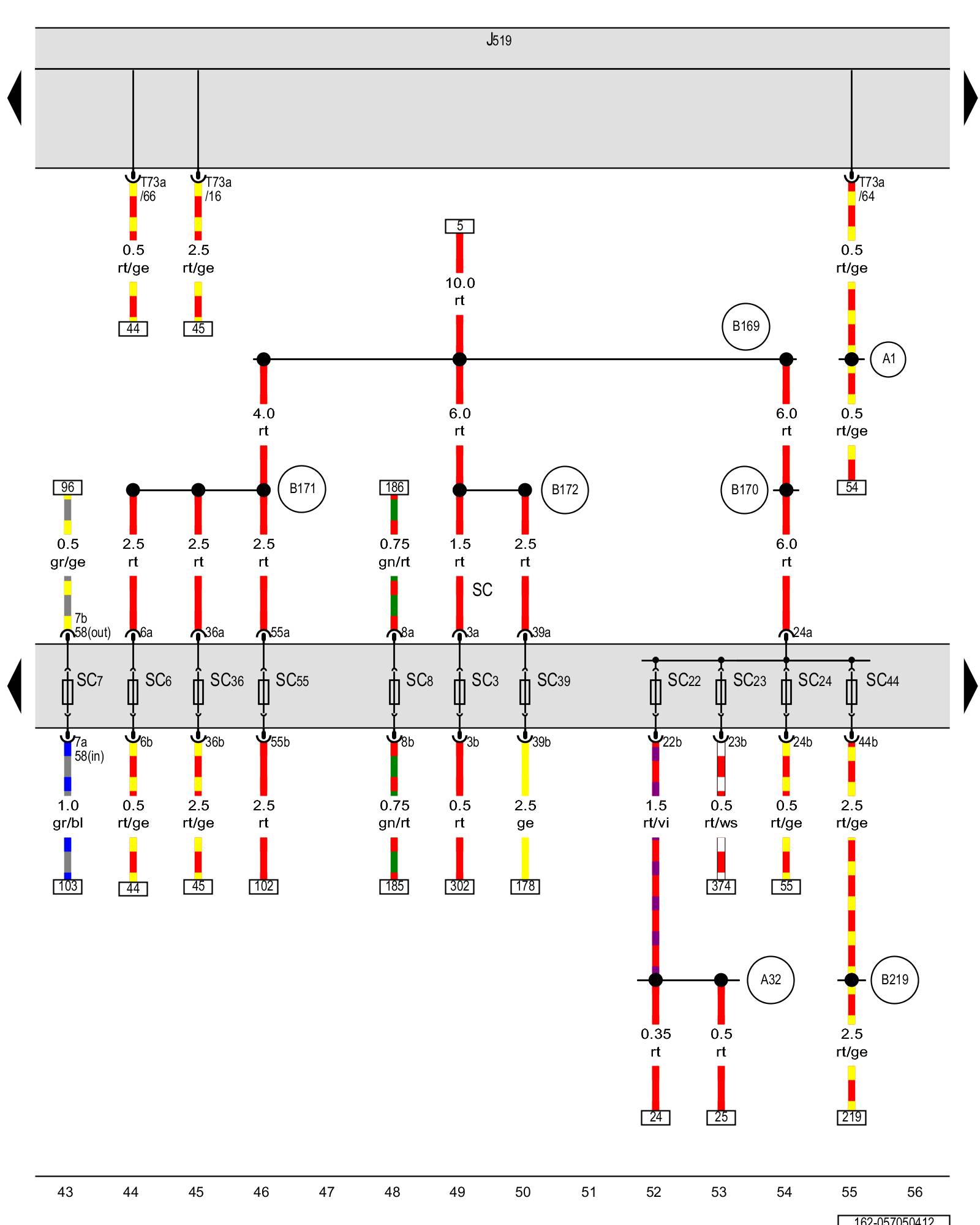

Diagram 57/5 (Tracks 43-56)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Vehicle electrical system control module, Fuse panel C





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

J519 - Vehicle electrical system control module Overview Of Control Modules

SC - Fuse panel C Overview of Fuses (SA), (SB), (SC)

SC3 - Fuse 3 (on fuse panel C) Overview of Fuses (SA), (SB), (SC)

SC6 - Fuse 6 (on fuse panel C) Overview of Fuses (SA), (SB), (SC)

SC7 - Fuse 7 (on fuse panel C) Overview of Fuses (SA), (SB), (SC)

SC8 - Fuse 8 (on fuse panel C) Overview of Fuses (SA), (SB), (SC)

SC22 - Fuse 22 (on fuse panel C) Overview of Fuses (SA), (SB), (SC)

SC23 - Fuse 23 (on fuse panel C) Overview of Fuses (SA), (SB), (SC)

SC24 - Fuse 24 (on fuse panel C) Overview of Fuses (SA), (SB), (SC)

SC36 - Fuse 36 (on fuse panel C) Overview of Fuses (SA), (SB), (SC)

SC39 - Fuse 39 (on fuse panel C) Overview of Fuses (SA), (SB), (SC)

SC44 - Fuse 44 (on fuse panel C) Overview of Fuses (SA), (SB), (SC)

SC55 - Fuse 55 (on fuse panel C) Overview of Fuses (SA), (SB), (SC)

T73a - 73-pin connector Overview Of Control Modules

(A1) - Positive connection (30a) (in instrument panel wiring harness)

(A32) - Positive connection (30) (in instrument panel wiring harness)

(B169) - Positive connection 1 (30) (in interior wiring harness)

(B170) - Positive connection 2 (30) (in interior wiring harness)

(B171) - Positive connection 3 (30) (in interior wiring harness)

(B172) - Positive connection 4 (30) (in interior wiring harness)

(B219) - Positive connection 4 (30a) (in interior wiring harness)
