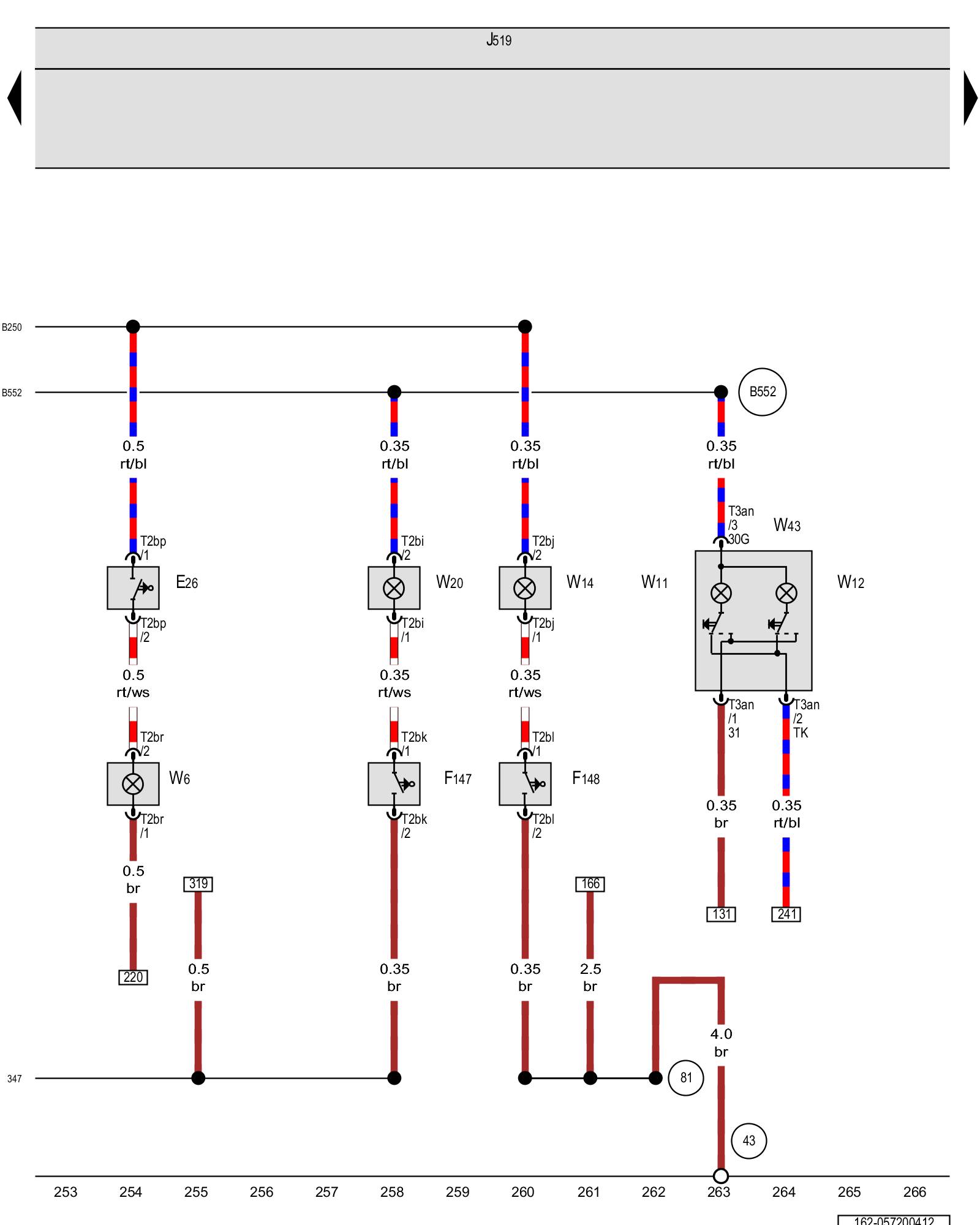

Diagram 57/20 (Tracks 253-266)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Glove compartment lamp switch, Vehicle electrical system control module, Glove compartment lamp, Left rear reading lamp, Right rear reading lamp, Front passenger vanity mirror lamp, Driver vanity mirror lamp, Rear interior lamp





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

E26 - Glove compartment lamp switch

F147 - Driver vanity mirror lamp contact switch

F148 - Front passenger vanity mirror lamp contact switch

J519 - Vehicle electrical system control module Overview Of Control Modules

T2bi - Double connector

T2bj - Double connector

T2bk - Double connector

T2bl - Double connector

T2bp - Double connector

T2br - Double connector

T3an - 3-pin connector

W6 - Glove compartment lamp

W11 - Left rear reading lamp

W12 - Right rear reading lamp

W14 - Front passenger vanity mirror lamp

W20 - Driver vanity mirror lamp

W43 - Rear interior lamp

(43) - Ground connection on A-pillar, lower right Locations

(81) - Ground connection 1 (in instrument panel wiring harness)

(347) - Ground connection (in roof wiring harness)

(B250) - Positive connection (in roof wiring harness)

(B552) - Positive connection 2 (in roof wiring harness)
