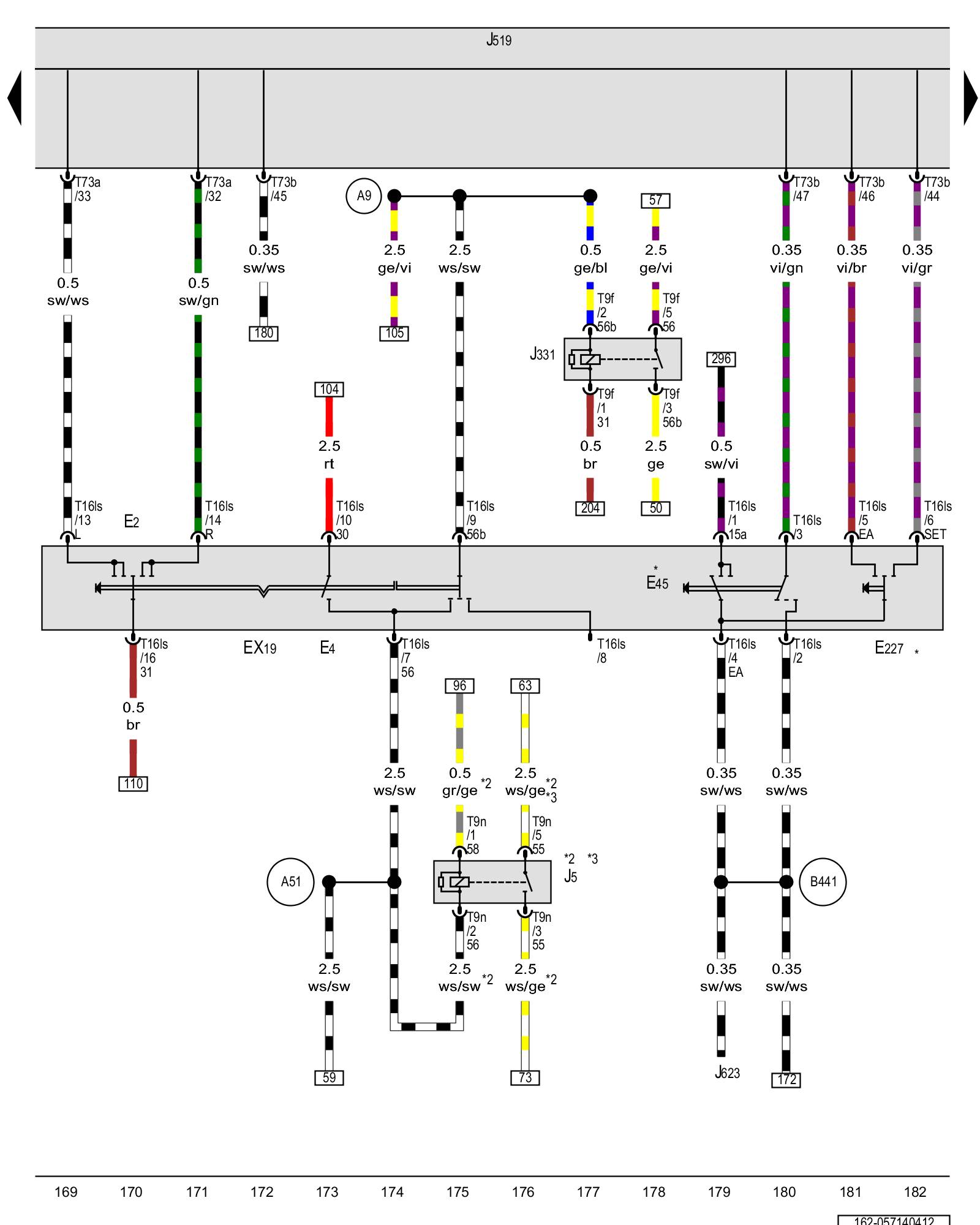

Diagram 57/14 (Tracks 169-182)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Turn signal switch, Headlamp dimmer/flasher switch, Left steering column switch, Cruise control switch, Cruise control -SET- button, Vehicle electrical system control module





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

E2 - Turn signal switch

E4 - Headlamp dimmer/flasher switch

EX19 - Left steering column switch

E45 - Cruise control switch

E227 - Cruise control -SET- button

J5 - Fog lamp relay Overview Of Relay Carrier

J331 - Low beam relay Overview Of Relay Carrier

J519 - Vehicle electrical system control module Overview Of Control Modules

J623 - Engine control module Overview Of Control Modules

T9f - 9-pin connector

T9n - 9-pin connector

T16ls - 16-pin connector

T73a - 73-pin connector Overview Of Control Modules

T73b - 73-pin connector Overview Of Control Modules

(A9) - Positive connection (56b) (in instrument cluster wiring harness)

(A51) - Connection 56 (in instrument panel wiring harness)

(B441) - Cruise control connection (in main wiring harness)

* - Only for vehicles with cruise control

*2 - USA only

*3 - Depending on equipment
