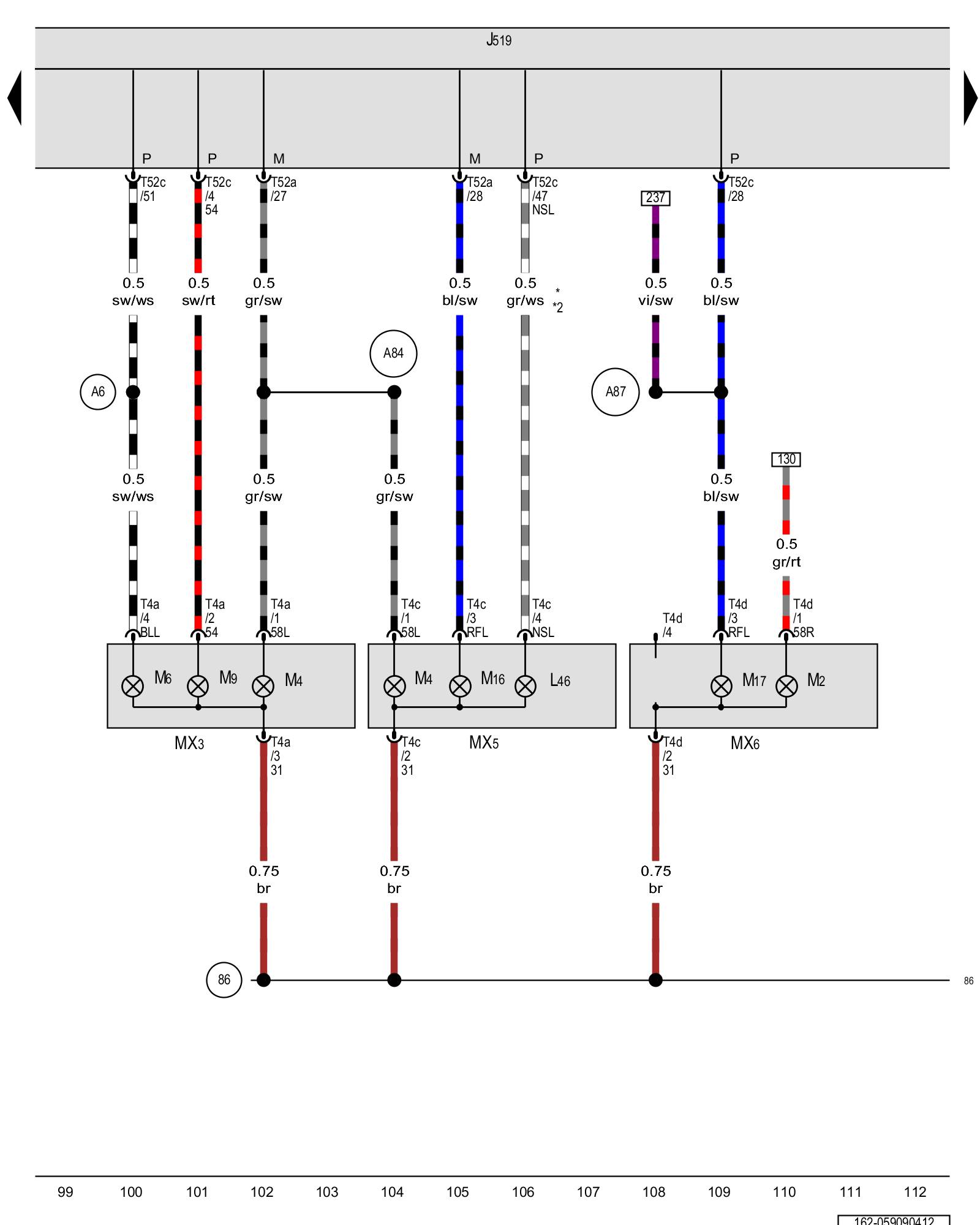

Diagram 59/9 (Tracks 99-112)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Vehicle electrical system control module, Left rear fog lamp bulb, Right tail lamp bulb, Left tail lamp, Left tail lamp bulb, Left rear turn signal bulb, Left brake lamp bulb, Right back-up lamp bulb





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

J519 - Vehicle electrical system control module Overview Of Control Modules

L46 - Left rear fog lamp bulb

M2 - Right tail lamp bulb

MX3 - Left tail lamp

M4 - Left tail lamp bulb

MX5 - Left tail lamp 2

M6 - Left rear turn signal bulb

MX6 - Right tail lamp 2

M9 - Left brake lamp bulb

M16 - Left back-up lamp bulb

M17 - Right back-up lamp bulb

T4a - 4-pin connector

T4c - 4-pin connector

T4d - 4-pin connector

T52a - 52-pin connector Overview Of Control Modules

T52c - 52-pin connector Overview Of Control Modules

(86) - Ground connection 1 (in rear wiring harness)

(A6) - Left turn signal positive connection (in instrument panel wiring harness)

(A84) - Connection 58L (in instrument panel wiring harness)

(A87) - Back-up lamp connection (in instrument panel wiring harness)

* - Depending on equipment

*2 - Only for vehicles without US equipment
