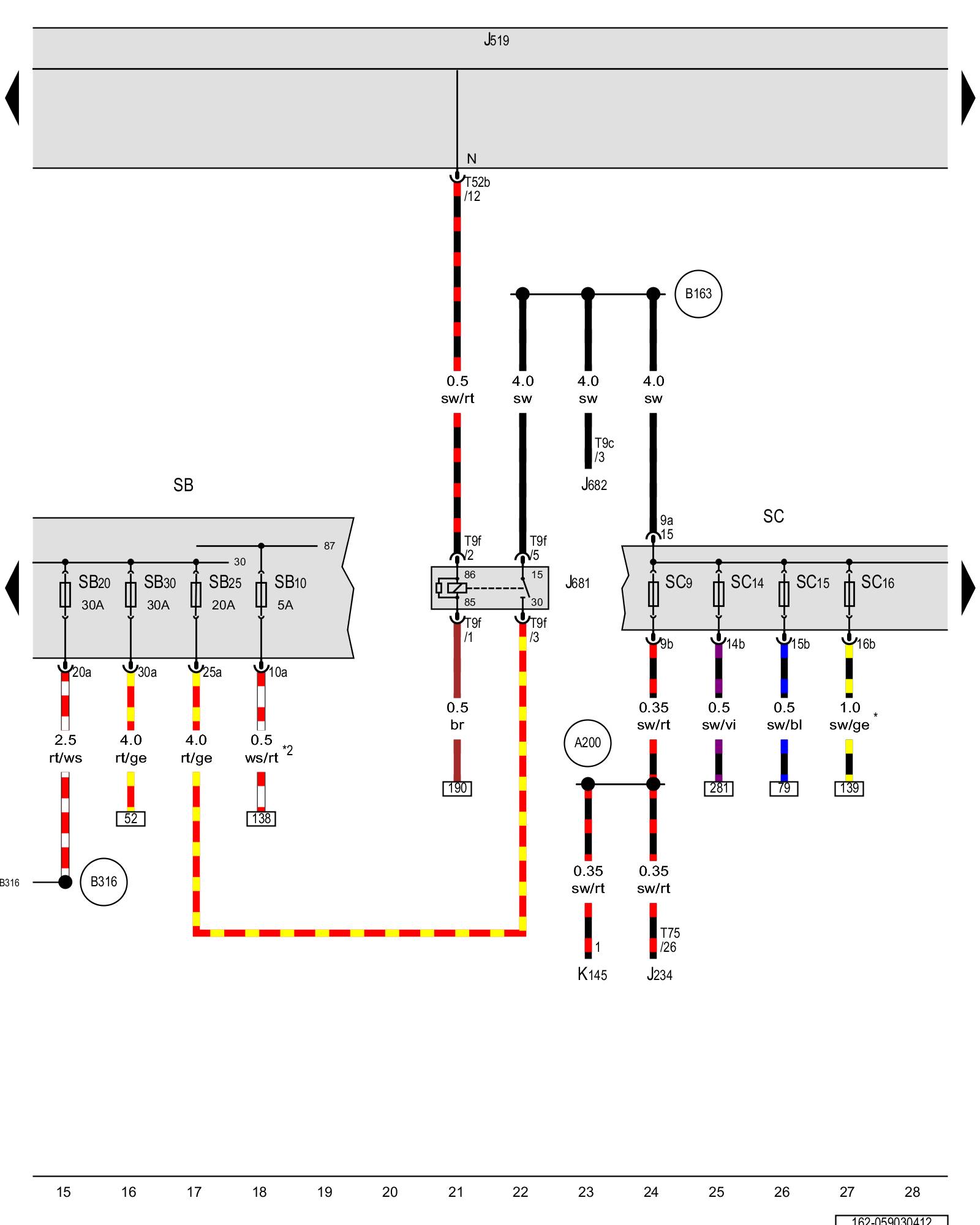

Diagram 59/3 (Tracks 15-28)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Vehicle electrical system control module, Terminal 15 power supply relay 2, Fuse panel B, Fuse panel C





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

J234 - Airbag control module Overview Of Control Modules

J519 - Vehicle electrical system control module Overview Of Control Modules

J681 - Terminal 15 power supply relay 2 Overview Of Relay Carrier

J682 - Terminal 50 power supply relay Overview Of Relay Carrier

K145 - Front passenger airbag -disabled- indicator lamp [1][2]Air Bag Deactivation Indicator

SB - Fuse panel B Overview of Fuses (SA), (SB), (SC)

SB10 - Fuse 10 (on fuse panel B) Overview of Fuses (SA), (SB), (SC)

SB20 - Fuse 20 (on fuse panel B) Overview of Fuses (SA), (SB), (SC)

SB25 - Fuse 25 (on fuse panel B) Overview of Fuses (SA), (SB), (SC)

SB30 - Fuse 30 (on fuse panel B) Overview of Fuses (SA), (SB), (SC)

SC - Fuse panel C Overview of Fuses (SA), (SB), (SC)

SC9 - Fuse 9 (on fuse panel C) Overview of Fuses (SA), (SB), (SC)

SC14 - Fuse 14 (on fuse panel C) Overview of Fuses (SA), (SB), (SC)

SC15 - Fuse 15 (on fuse panel C) Overview of Fuses (SA), (SB), (SC)

SC16 - Fuse 16 (on fuse panel C) Overview of Fuses (SA), (SB), (SC)

T9c - 9-pin connector

T9f - 9-pin connector

T52b - 52-pin connector Overview Of Control Modules

T75 - 75-pin connector

(A200) - Positive connection 5 (15a) (in instrument panel wiring harness)

(B163) - Positive connection 1 (15) (in interior wiring harness)

(B316) - Positive connection 2 (30a) (in main wiring harness)

* - Only for vehicles with a manual transmission

*2 - Only for vehicles with DSG transmission
