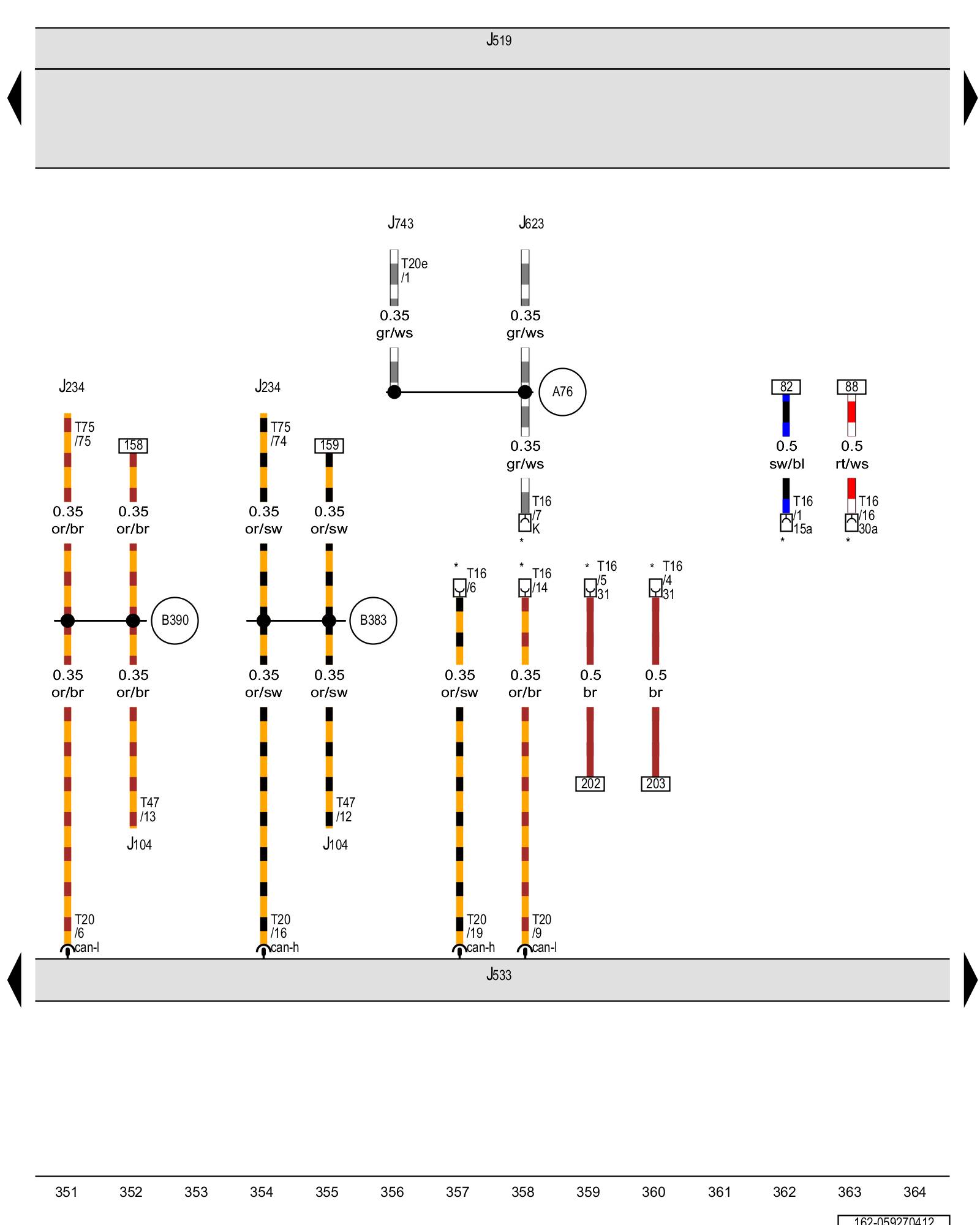

Diagram 59/27 (Tracks 351-364)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Vehicle electrical system control module, Data bus on board diagnostic interface





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

J104 - ABS control module Overview Of Control Modules [1][2]Diagrams

J234 - Airbag control module Overview Of Control Modules

J519 - Vehicle electrical system control module Overview Of Control Modules

J533 - Data bus on board diagnostic interface Overview Of Control Modules

J623 - Engine control module Overview Of Control Modules

J743 - DSG transmission Mechatronic Locations Overview Of Control Modules Connector Views

T16 - 16-pin connector Overview Of Connector Stations and Connectors

T20 - 20-pin connector

T20e - 20-pin connector

T47 - 47-pin connector

T75 - 75-pin connector

(A76) - KS-diagnostic lead connection (in instrument panel wiring harness)

(B383) - Powertrain CAN bus high connection 1 (in main wiring harness)

(B390) - Powertrain CAN bus low connection 1 (in main wiring harness)

* - Diagnostic connector

Previous Diagram 59/26 (Tracks 337-350)

Next Diagram 59/28 (Tracks 365-378)
