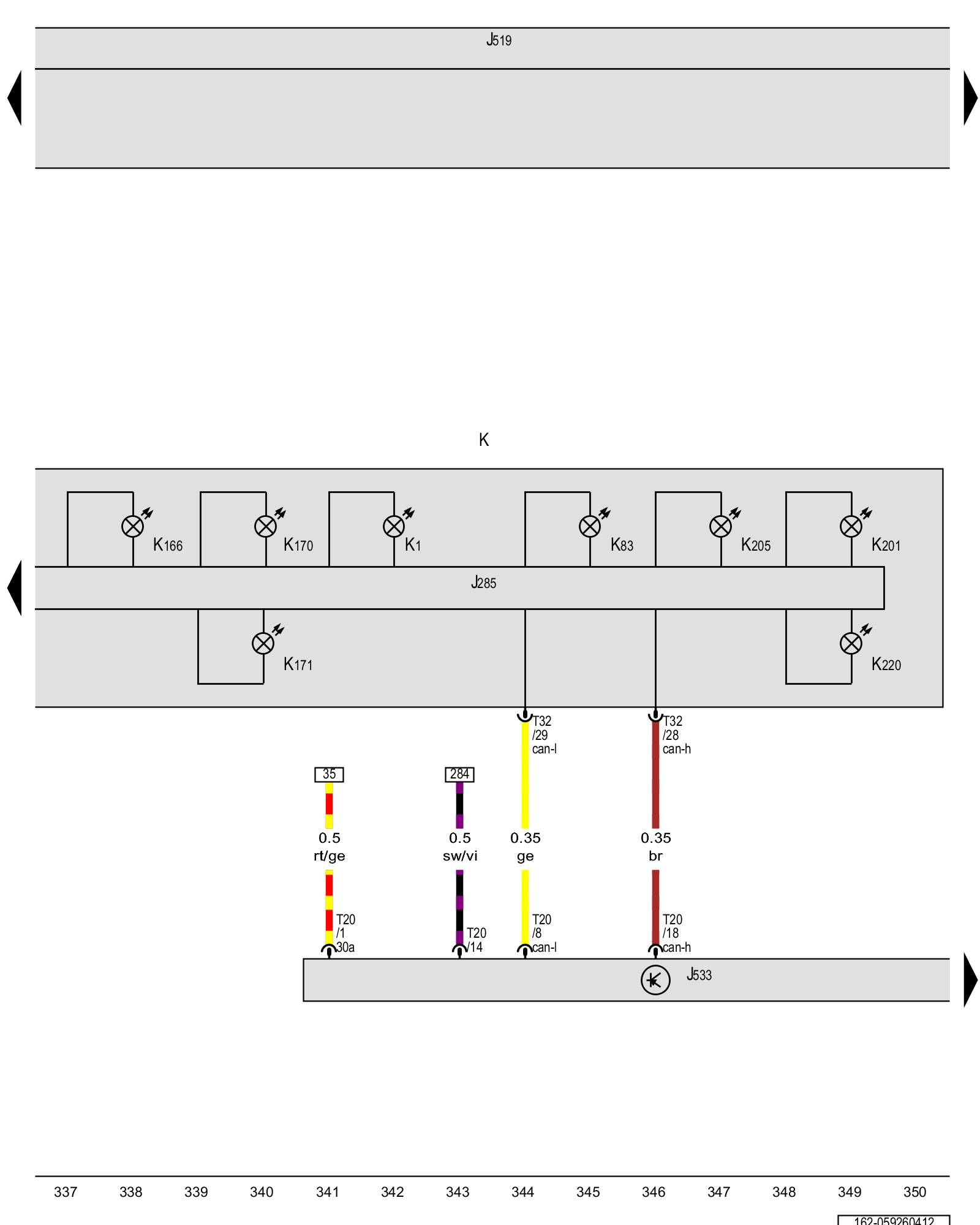

Diagram 59/26 (Tracks 337-350)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Vehicle electrical system control module, Data bus on board diagnostic interface, Instrument cluster





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

J285 - Instrument cluster control module Overview Of Control Modules

J519 - Vehicle electrical system control module Overview Of Control Modules

J533 - Data bus on board diagnostic interface Overview Of Control Modules

K - Instrument cluster Overview Of Control Modules

K1 - High beam indicator lamp

K83 - Malfunction indicator lamp

K166 - Door ajar indicator lamp

K170 - Lamp failure indicator lamp

K171 - Hood -open- indicator lamp

K201 - Fuel filler door lock indicator lamp

K205 - Daytime running lamp indicator lamp

K220 - Tire pressure monitoring display indicator lamp

T20 - 20-pin connector

T32 - 32-pin connector
