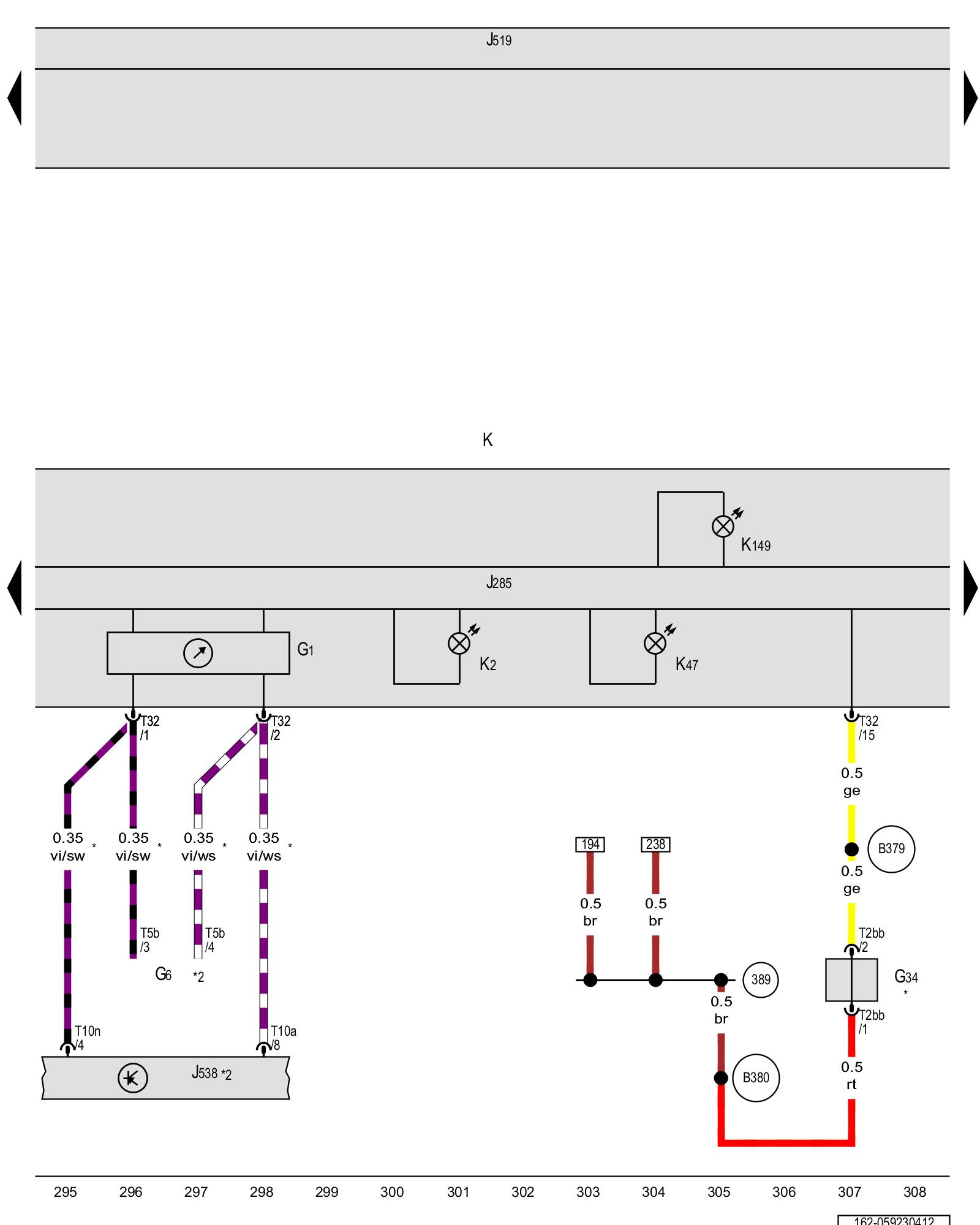

Diagram 59/23 (Tracks 295-308)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Transfer fuel pump, Left front brake pad wear sensor, Vehicle electrical system control module, Fuel pump control module, Instrument cluster





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

G1 - Fuel gauge

G6 - Transfer fuel pump Locations Transfer Fuel Pump -G6-

G34 - Left front brake pad wear sensor

J285 - Instrument cluster control module Overview Of Control Modules

J519 - Vehicle electrical system control module Overview Of Control Modules

J538 - Fuel pump control module Overview Of Control Modules Locations

K - Instrument cluster Overview Of Control Modules

K2 - Generator indicator lamp

K47 - ABS indicator lamp Locations

K149 - Engine electronics indicator lamp

T2bb - Double connector

T5b - 5-pin connector

T10a - 10-pin connector Overview Of Connector Stations and Connectors

T10n - 10-pin connector

T32 - 32-pin connector

(389) - Ground connection 24 (in main wiring harness)

(B379) - Brake wear indicator connection 1 (in main wiring harness)

(B380) - Brake wear indicator connection 2 (in main wiring harness)

* - Depending on equipment

*2 - Refer to applicable engine wiring diagram
