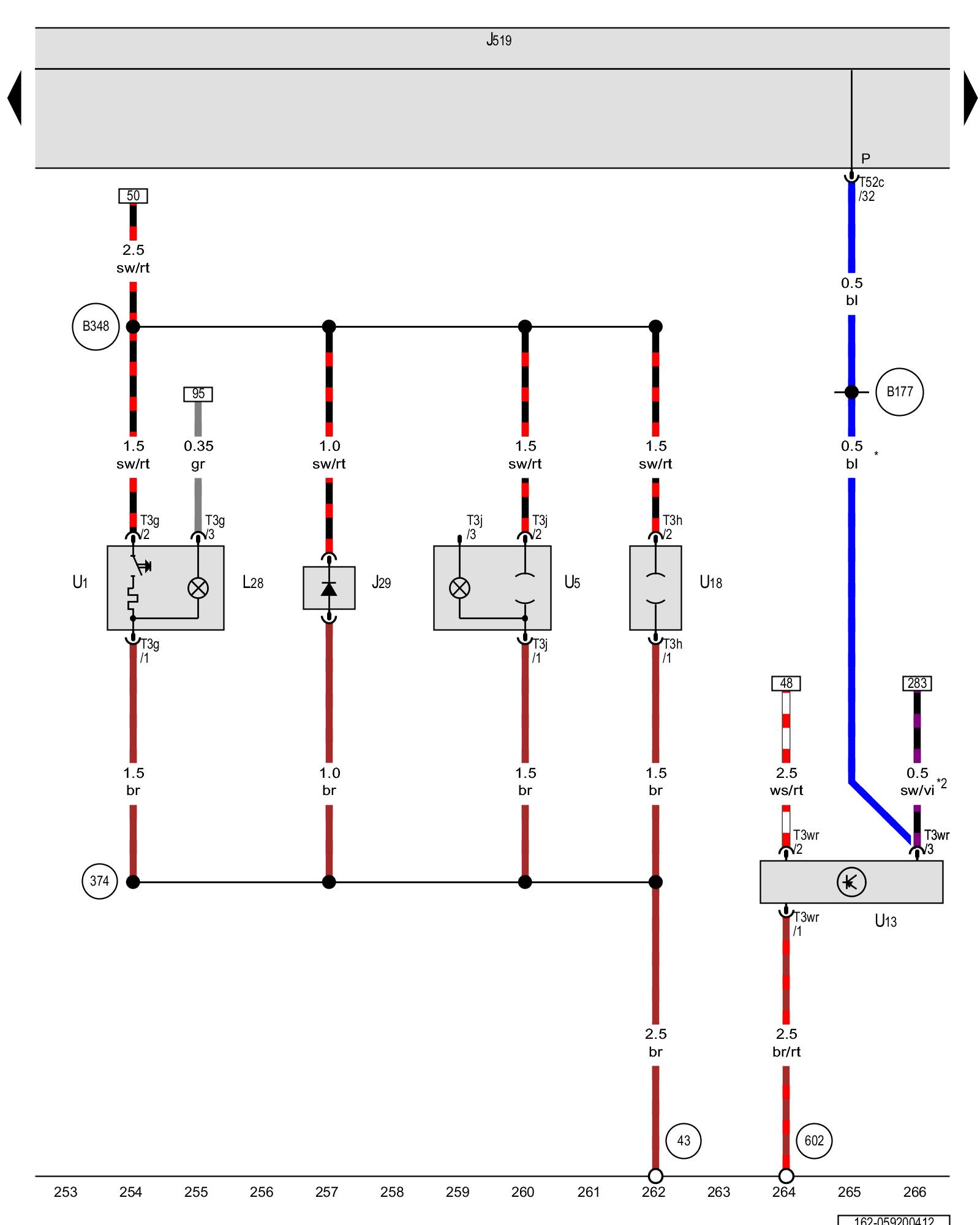

Diagram 59/20 (Tracks 253-266)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Blocking diode, Vehicle electrical system control module, Cigarette lighter illumination bulb, Cigarette lighter, 12 V socket, Converter with socket, 12 V-230 V





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

J29 - Blocking diode

J519 - Vehicle electrical system control module Overview Of Control Modules

L28 - Cigarette lighter illumination bulb

T3g - 3-pin connector

T3h - 3-pin connector

T3j - 3-pin connector

T3wr - 3-pin connector

T52c - 52-pin connector Overview Of Control Modules

U1 - Cigarette lighter

U5 - 12 V socket

U13 - Converter with socket, 12 V-230 V

U18 - 12 V socket 2

(43) - Ground connection on A-pillar, lower right Locations

(374) - Ground connection 9 (in main wiring harness)

(602) - Ground connection in left front footwell Locations

(B177) - Connection 61 (in interior wiring harness)

(B348) - Connection 75a (in main wiring harness) 1

* - Only for vehicles without Start/Stop system

*2 - Only for vehicles with Start/Stop system
