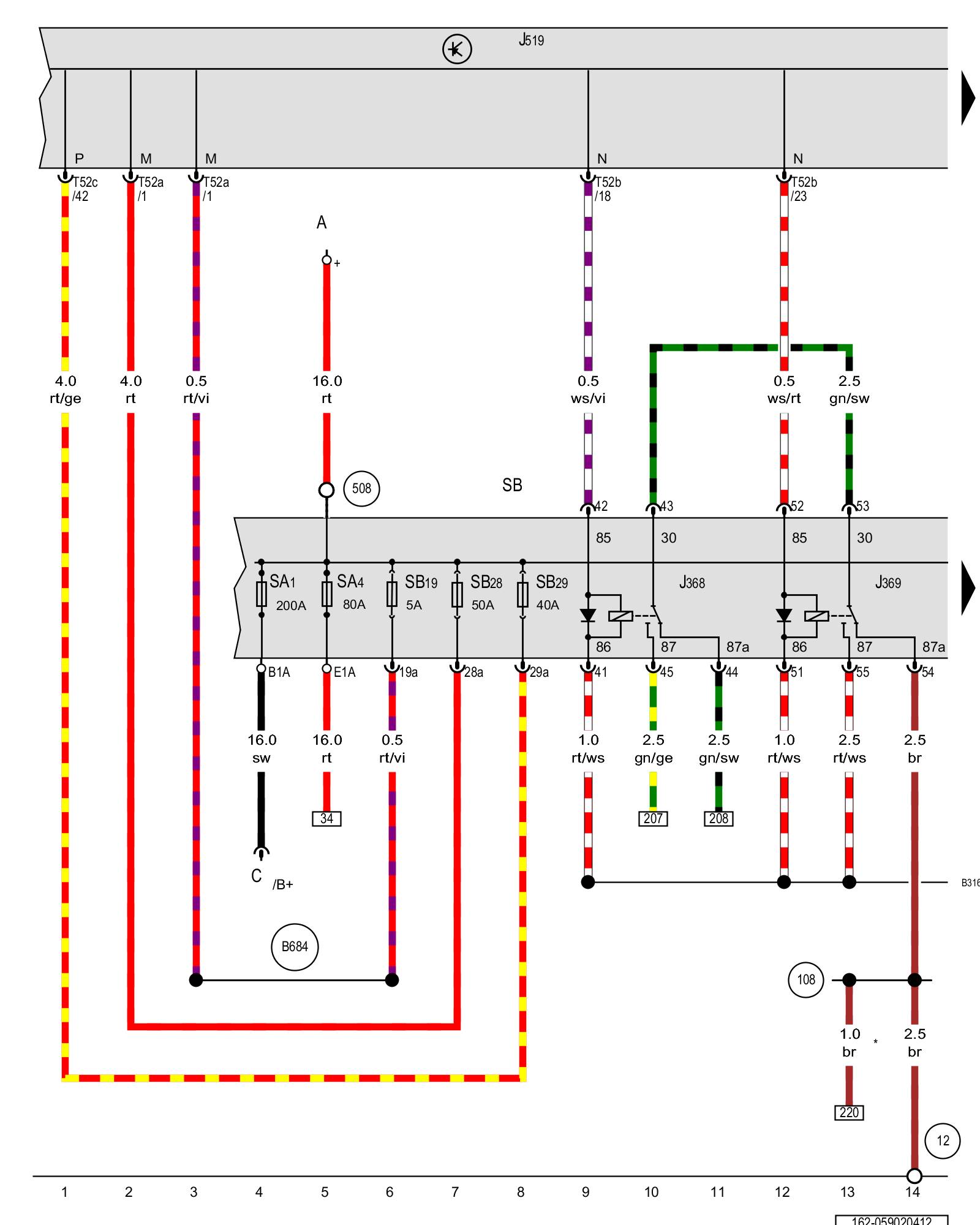

Diagram 59/2 (Tracks 1-14)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Wiper motor change-over relay 1, Wiper motor change-over relay 2, Vehicle electrical system control module, Fuse 1 (on fuse panel A), Fuse 4 (on fuse panel A), Fuse panel B





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

A - Battery

C - Generator

J368 - Wiper motor change-over relay 1 Overview Of Relay Carrier

J369 - Wiper motor change-over relay 2 Overview Of Relay Carrier

J519 - Vehicle electrical system control module Overview Of Control Modules

SA1 - Fuse 1 (on fuse panel A) Overview of Fuses (SA), (SB), (SC)

SA4 - Fuse 4 (on fuse panel A) Overview of Fuses (SA), (SB), (SC)

SB - Fuse panel B Overview of Fuses (SA), (SB), (SC)

SB19 - Fuse 19 (on fuse panel B) Overview of Fuses (SA), (SB), (SC)

SB28 - Fuse 28 (on fuse panel B) Overview of Fuses (SA), (SB), (SC)

SB29 - Fuse 29 (on fuse panel B) Overview of Fuses (SA), (SB), (SC)

T52a - 52-pin connector Overview Of Control Modules

T52b - 52-pin connector Overview Of Control Modules

T52c - 52-pin connector Overview Of Control Modules

(12) - Ground connection in engine compartment, left Locations

(108) - Ground connection 2 (in left front wiring harness)

(508) - Terminal 30 threaded connection (on E-box)

(B316) - Positive connection 2 (30a) (in main wiring harness)

(B684) - Positive connection 24 (30a) (in main wiring harness)

* - Only for vehicles with dual tone horn

Next Diagram 59/3 (Tracks 15-28)
