Diagram 59/14 (Tracks 169-182)






IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions

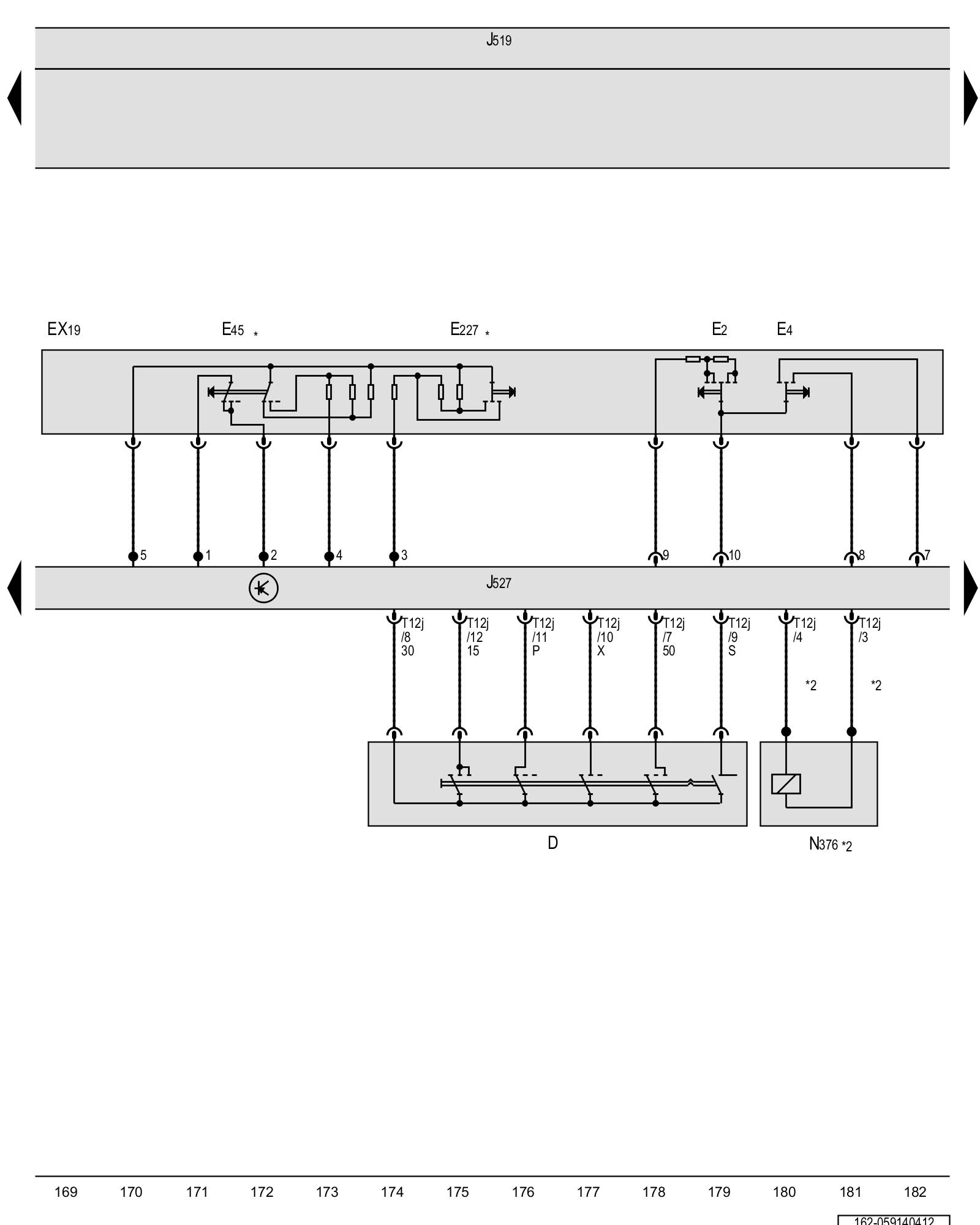

Ignition/starter switch, Turn signal switch, Headlamp dimmer/flasher switch, Left steering column switch, Cruise control switch, Cruise control -SET- button, Vehicle electrical system control module, Steering column electronics control module





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

D - Ignition/starter switch

E2 - Turn signal switch

E4 - Headlamp dimmer/flasher switch

EX19 - Left steering column switch

E45 - Cruise control switch

E227 - Cruise control -SET- button

J519 - Vehicle electrical system control module Overview Of Control Modules

J527 - Steering column electronics control module Overview Of Control Modules Steering Column Electronics Control Module -J527-

N376 - Ignition switch key lock solenoid

T12j - 12-pin connector

* - Only for vehicles with cruise control

*2 - Only for vehicles with DSG transmission

Previous Diagram 59/13 (Tracks 155-168)

Next Diagram 59/15 (Tracks 183-196)
