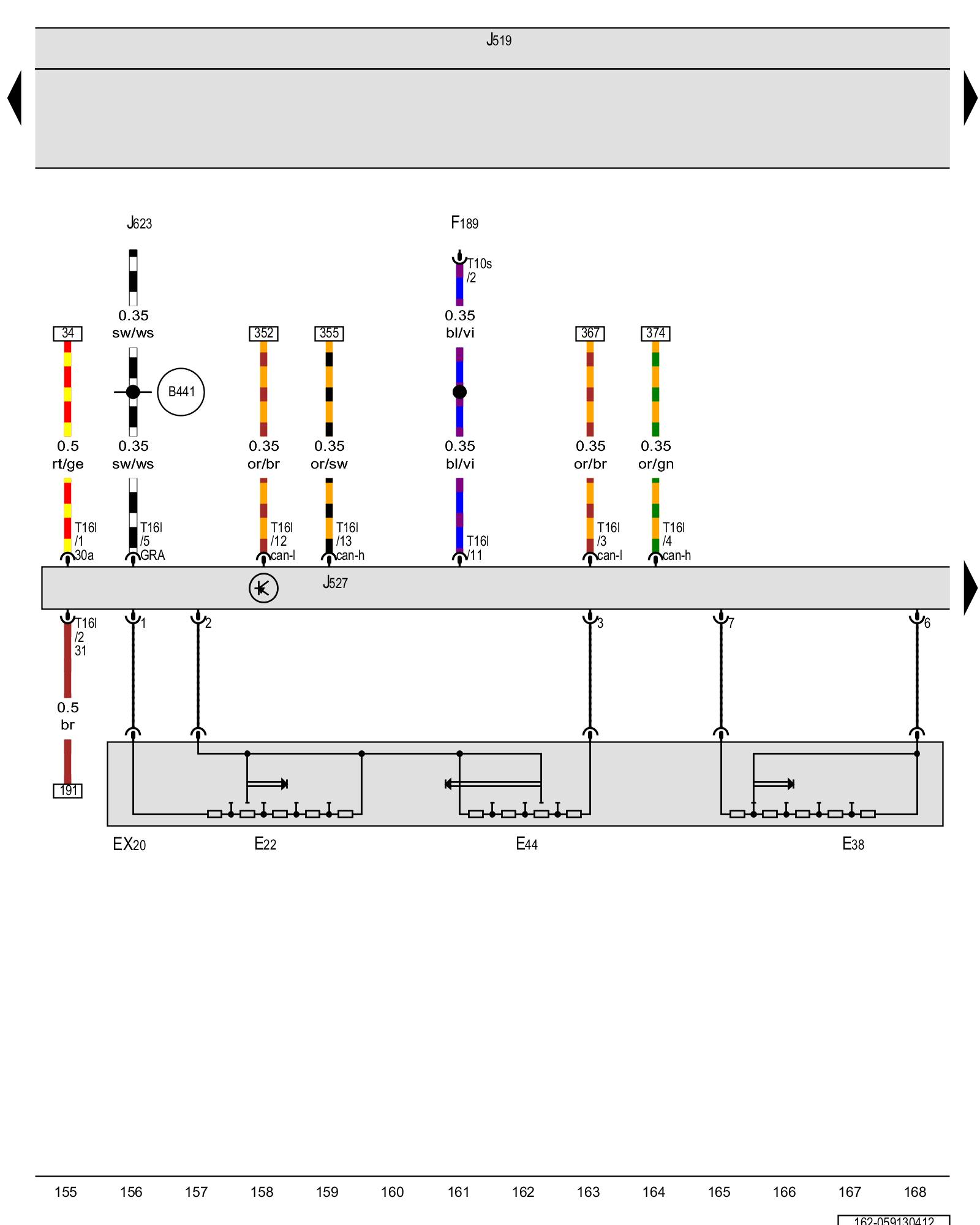

Diagram 59/13 (Tracks 155-168)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Right steering column switch, Windshield wiper intermittent mode switch, Windshield wiper intermittent regulator, Windshield and headlamp washer pump switch, Vehicle electrical system control module, Steering column electronics control module





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

EX20 - Right steering column switch

E22 - Windshield wiper intermittent mode switch

E38 - Windshield wiper intermittent regulator

E44 - Windshield and headlamp washer pump switch

F189 - tiptronic switch Selector Mechanism Assembly Overview Tiptronic Switch -F189- /Selector Lever -E313- and Selector Lever Park Position Lock Switch -F319-

J519 - Vehicle electrical system control module Overview Of Control Modules

J527 - Steering column electronics control module Overview Of Control Modules Steering Column Electronics Control Module -J527-

J623 - Engine control module Overview Of Control Modules

T10s - 10-pin connector

T16l - 16-pin connector

(B441) - Cruise control connection (in main wiring harness)
