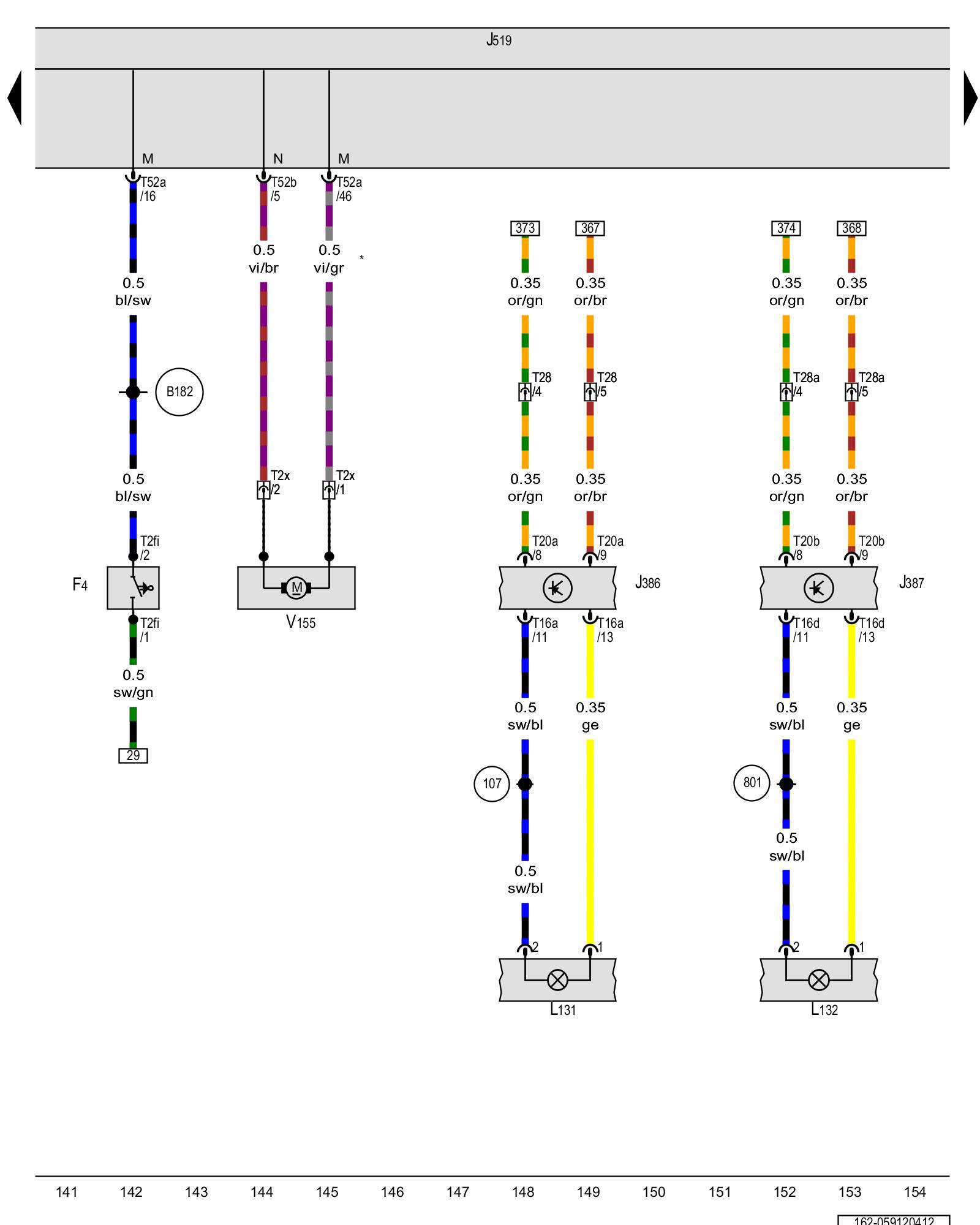

Diagram 59/12 (Tracks 141-154)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Back-up lamp switch, Driver door control module, Front passenger door control module, Vehicle electrical system control module, Driver exterior rearview mirror turn signal bulb, Front passenger exterior rearview mirror turn signal bulb, Fuel filler door unlock motor





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

F4 - Back-up lamp switch Locations

J386 - Driver door control module Overview Of Control Modules Locations Driver/Front Pass Door Control Module -J386- / -J387-

J387 - Front passenger door control module Overview Of Control Modules Locations Driver/Front Pass Door Control Module -J386- / -J387-

J519 - Vehicle electrical system control module Overview Of Control Modules

L131 - Driver exterior rearview mirror turn signal bulb

L132 - Front passenger exterior rearview mirror turn signal bulb

T2fi - Double connector

T2x - Double connector

T16a - 16-pin connector

T16d - 16-pin connector

T20a - 20-pin connector

T20b - 20-pin connector

T28 - 28-pin connector Overview Of Connector Stations and Connectors

T28a - 28-pin connector, near the lower right A-pillar Overview Of Connector Stations and Connectors

T52a - 52-pin connector Overview Of Control Modules

T52b - 52-pin connector Overview Of Control Modules

V155 - Fuel filler door unlock motor Locations

(107) - Ground connection (in exterior mirror wiring harness)

(801) - Ground connection 2 (in exterior rearview mirror wiring harness)

(B182) - Connection RF (in interior wiring harness)

* - The color of the wires depends on vehicle equipment
