Diagram 59/11 (Tracks 127-140)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions

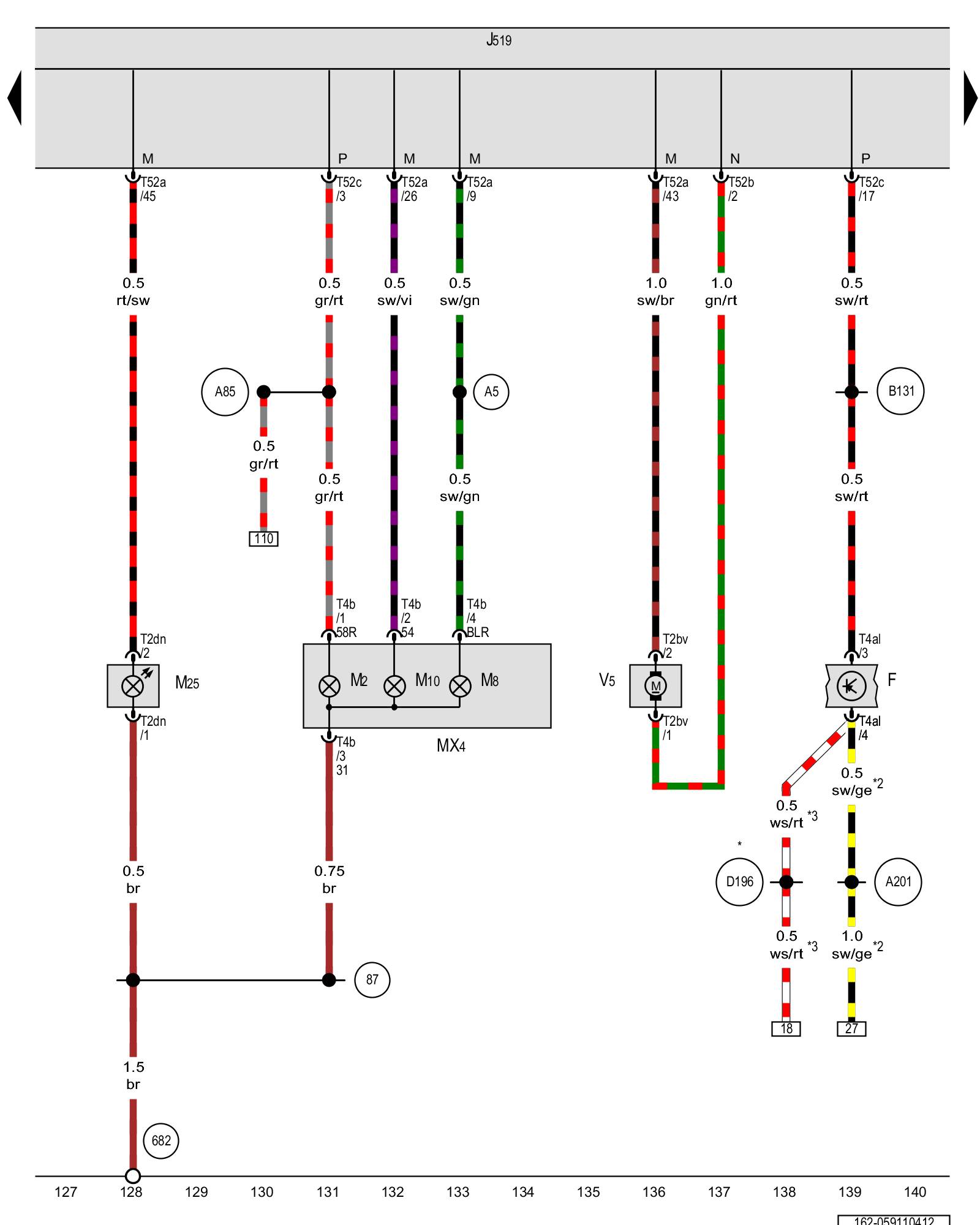

Brake lamp switch, Vehicle electrical system control module, Right tail lamp, Right rear turn signal bulb, Right brake lamp bulb, High-mounted brake lamp bulb





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

F - Brake lamp switch Locations Locations [1][2]Brake Light Switch

J519 - Vehicle electrical system control module Overview Of Control Modules

M2 - Right tail lamp bulb

MX4 - Right tail lamp

M8 - Right rear turn signal bulb

M10 - Right brake lamp bulb

M25 - High-mounted brake lamp bulb

T2bv - Double connector

T2dn - Double connector

T4al - 4-pin connector

T4b - 4-pin connector

T52a - 52-pin connector Overview Of Control Modules

T52b - 52-pin connector Overview Of Control Modules

T52c - 52-pin connector Overview Of Control Modules

V5 - Windshield washer pump

(87) - Ground connection 2 (in rear wiring harness)

(682) - Ground connection 2 in right rear side panel Locations

(A5) - Right turn signal positive connection (in instrument panel wiring harness)

(A85) - Connection 58R (in instrument panel wiring harness)

(A201) - Positive connection 6 (15a) (in instrument panel wiring harness)

(B131) - Connection 54 (in interior wiring harness)

(D196) - Connection 87a (in engine wiring harness) 2

* - Depending on equipment

*2 - Only for vehicles with a manual transmission

*3 - Only for vehicles with DSG transmission

Previous Diagram 59/10 (Tracks 113-126)

Next Diagram 59/12 (Tracks 141-154)
