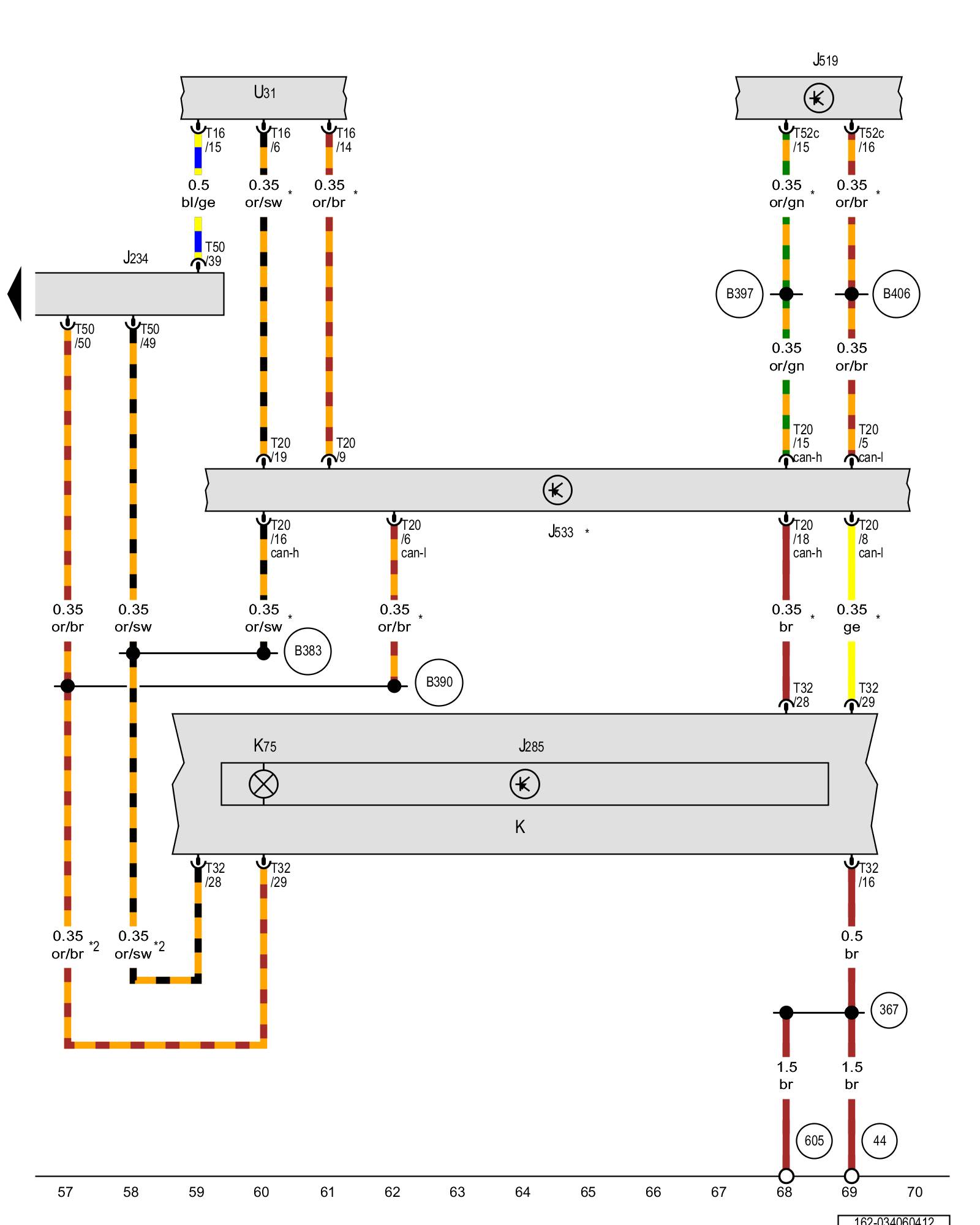

Diagram 34/6 (Tracks 57-70)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Airbag control module, Instrument cluster control module, Vehicle electrical system control module, Data bus on board diagnostic interface, Instrument cluster





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

J234 - Airbag control module Overview Of Control Modules

J285 - Instrument cluster control module Overview Of Control Modules

J519 - Vehicle electrical system control module Overview Of Control Modules

J533 - Data bus on board diagnostic interface Overview Of Control Modules

K - Instrument cluster Overview Of Control Modules

K75 - Airbag indicator lamp

T16 - 16-pin connector Overview Of Connector Stations and Connectors

T20 - 20-pin connector

T32 - 32-pin connector

T50 - 50-pin connector

T52c - 52-pin connector Overview Of Control Modules

U31 - Diagnostic connection Overview Of Connector Stations and Connectors

(44) - Ground connection on A-pillar, lower left Locations

(367) - Ground connection 2 (in main wiring harness)

(605) - Ground connection on upper steering column Locations

(B383) - Powertrain CAN bus high connection 1 (in main wiring harness)

(B390) - Powertrain CAN bus low connection 1 (in main wiring harness)

(B397) - Comfort system CAN bus high connection 1 (in main wiring harness)

(B406) - Comfort system CAN bus low connection 1 (in main wiring harness)

* - only for vehicles with High equipment (AW1)

*2 - only for vehicles with Low equipment (AW0)
