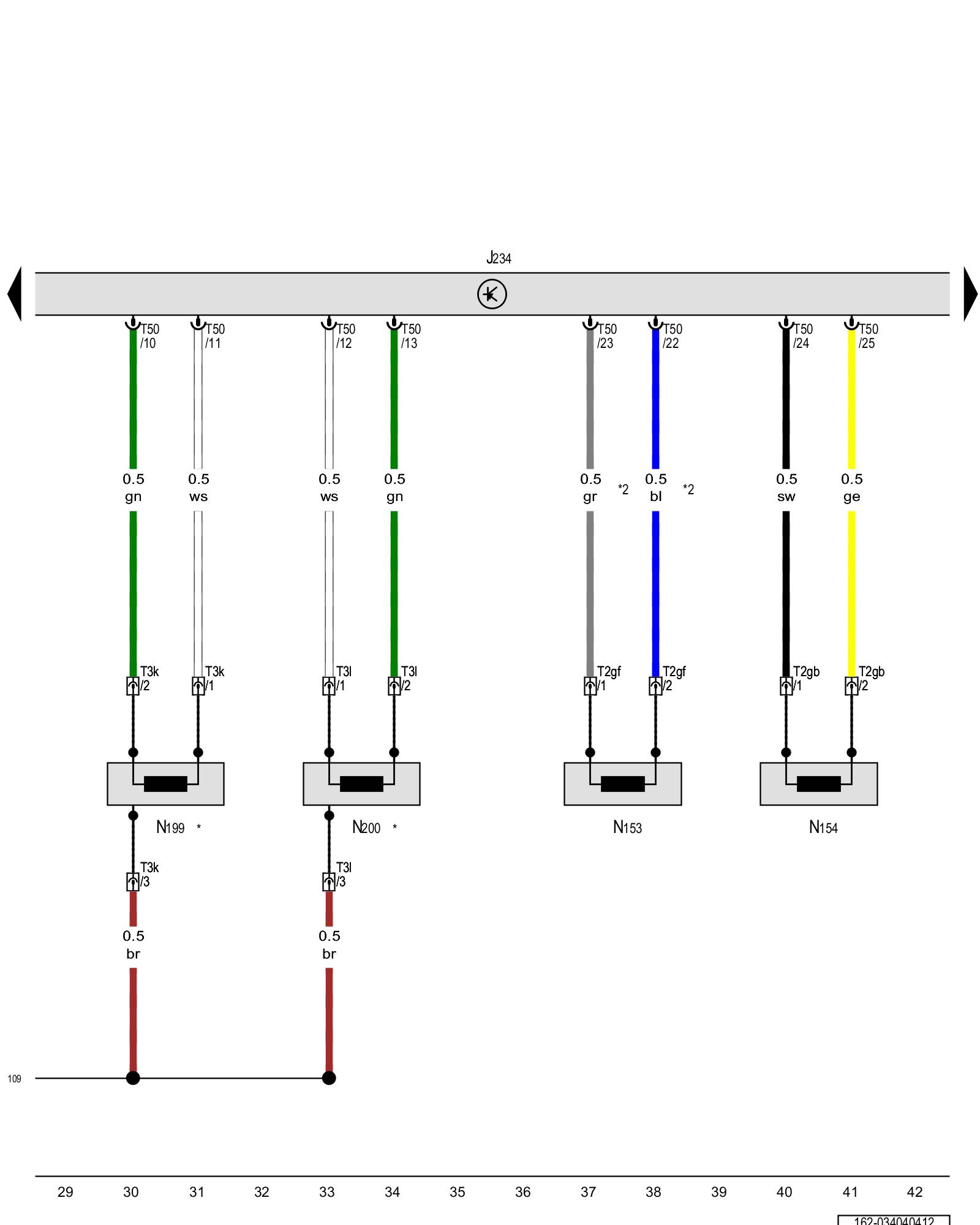

Diagram 34/4 (Tracks 29-42)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Airbag control module, Driver seat belt tensioner igniter 1, Front passenger seat belt tensioner igniter 1, Driver thorax airbag igniter, Front passenger thorax airbag igniter





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

J234 - Airbag control module Overview Of Control Modules

N153 - Driver seat belt tensioner igniter 1 Locations Driver Seat Belt Tensioner Igniter

N154 - Front passenger seat belt tensioner igniter 1 Locations Front Pass Seat Belt Tensioner Igniter 1 -N154-

N199 - Driver thorax airbag igniter Airbag System Overview

N200 - Front passenger thorax airbag igniter Airbag System Overview Front Pass Thorax Airbag Igniter -N200- and Driver Thorax Airbag Igniter -N199-

T2gb - Double connector

T2gf - Double connector

T3k - 3-pin connector Overview Of Connector Stations and Connectors

T3l - 3-pin connector Overview Of Connector Stations and Connectors

T50 - 50-pin connector

(109) - Ground connection (in airbag wiring harness)

* - Only for vehicles with side airbags

*2 - The color of the wires depends on vehicle equipment
