Diagram 50/18 (Tracks 225-238)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions

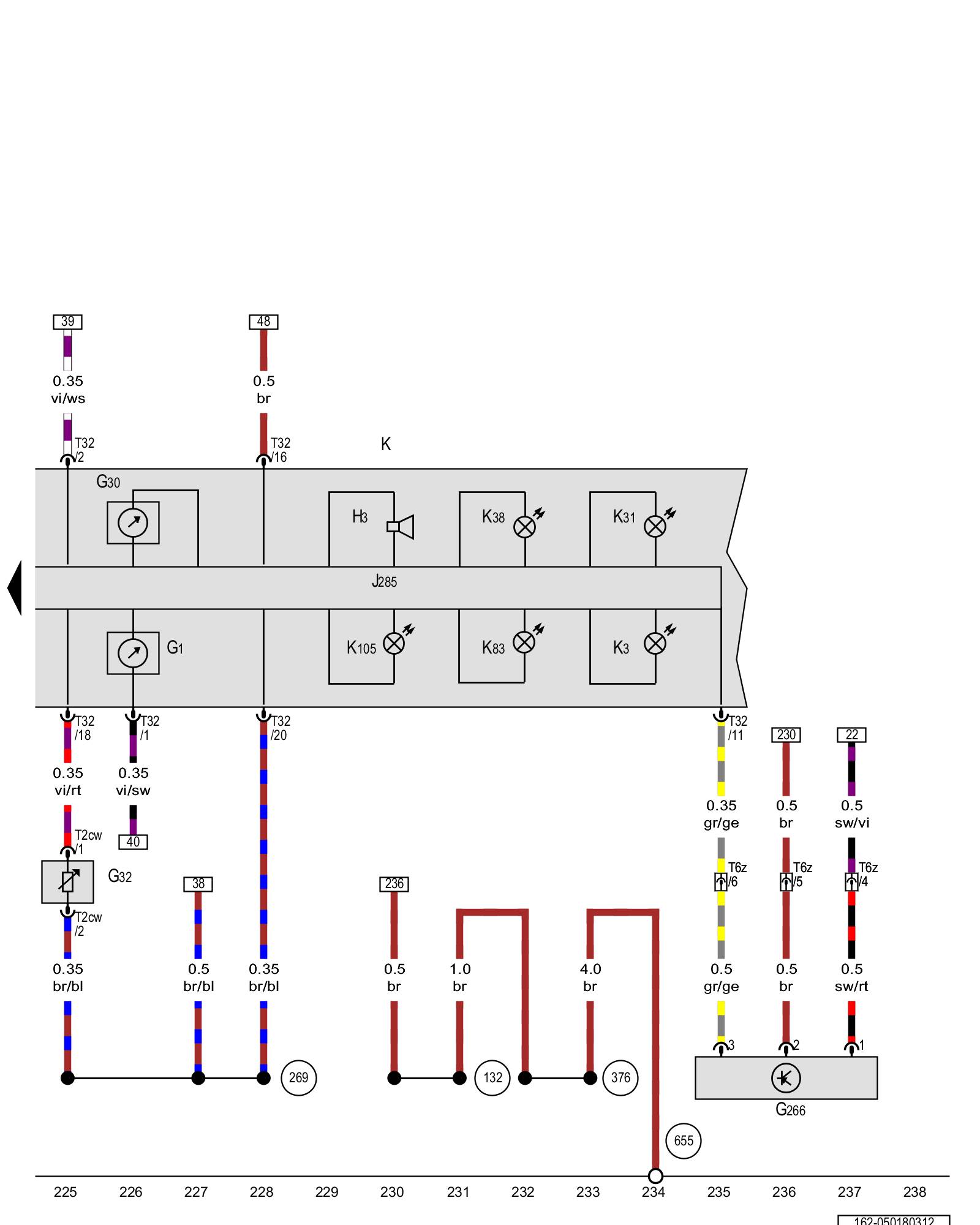

Fuel gauge, Charge air pressure gauge, Warning buzzer and tone, Instrument cluster, Oil pressure indicator lamp, Cruise control indicator lamp, Oil level indicator lamp, Malfunction indicator lamp, Low fuel level indicator lamp





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

G1 - Fuel gauge

G30 - Charge air pressure gauge

G32 - Engine coolant level sensor Locations

G266 - Oil level thermal sensor Locations

H3 - Warning buzzer and tone

J285 - Instrument cluster control module Overview Of Control Modules

K - Instrument cluster Overview Of Control Modules

K3 - Oil pressure indicator lamp

K31 - Cruise control indicator lamp

K38 - Oil level indicator lamp

K83 - Malfunction indicator lamp

K105 - Low fuel level indicator lamp

T2cw - Double connector

T6z - 6-pin connector Overview Of Connector Stations and Connectors

T32 - 32-pin connector

(132) - Ground connection 3 (in engine compartment wiring harness)

(269) - Sensor ground connection 1 (in instrument panel wiring harness)

(376) - Ground connection 11 (in main wiring harness)

(655) - Ground connection on left headlamp Locations

Previous Diagram 50/17 (Tracks 211-224)
