Diagram 21/7 (Tracks 71-84)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions

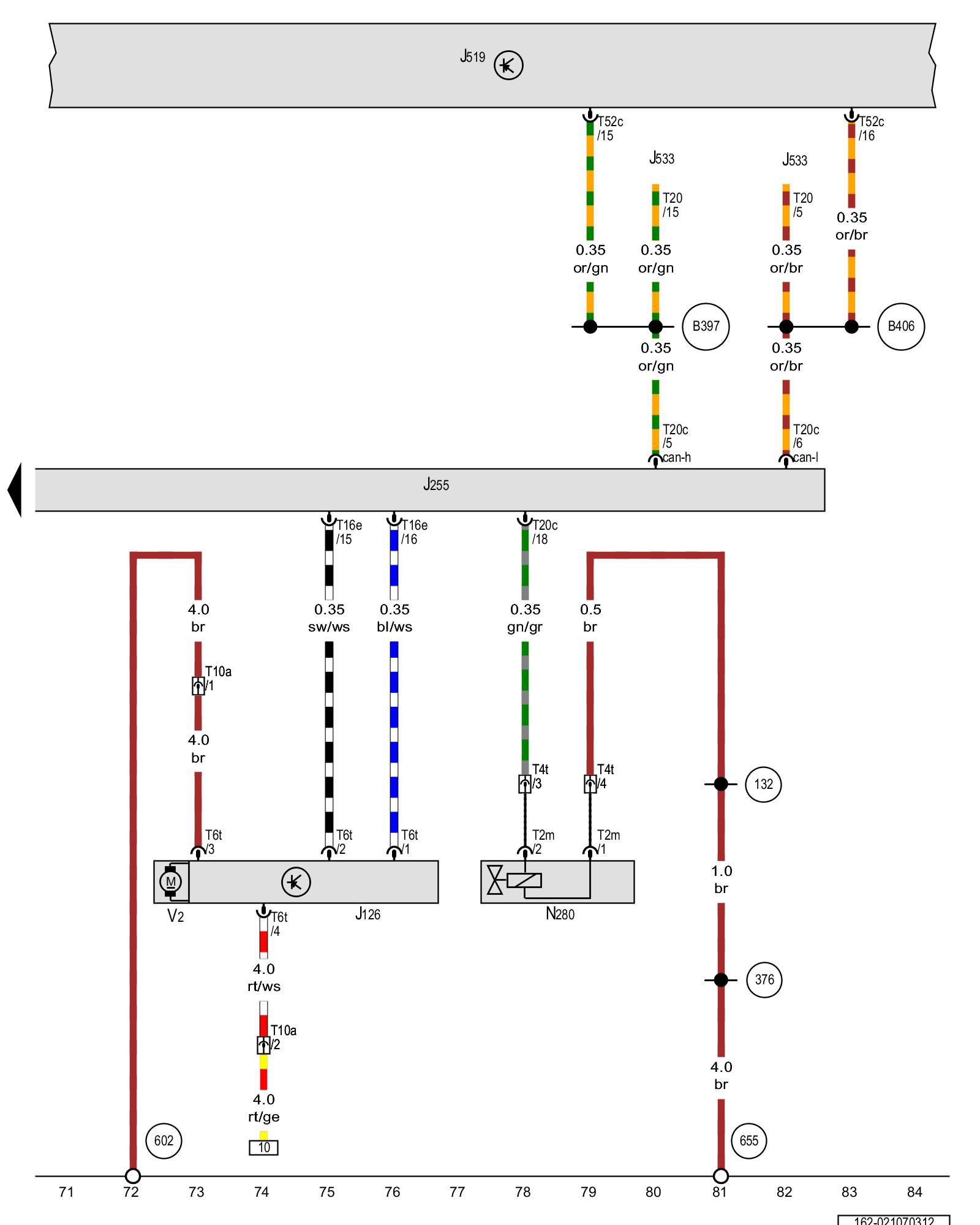

Fresh air blower control module, Climatronic control module, Vehicle electrical system control module, A/C compressor regulator valve, Fresh air blower





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

J126 - Fresh air blower control module Overview Of Control Modules Climatronic (Automatic Climate Control) Systems Overview Fresh Air Blower Control Module -J126-

J255 - Climatronic control module Overview Of Control Modules Climatronic (Automatic Climate Control) Systems Overview Climatronic (Automatic Climate Control) Control Module -J255-

J519 - Vehicle electrical system control module Overview Of Control Modules

J533 - Data bus on board diagnostic interface Overview Of Control Modules

N280 - A/C compressor regulator valve Locations [1][2]Diagrams

T2m - Double connector

T4t - 4-pin connector Overview Of Connector Stations and Connectors

T6t - 6-pin connector

T10a - 10-pin connector Overview Of Connector Stations and Connectors

T16e - 16-pin connector

T20 - 20-pin connector

T20c - 20-pin connector

T52c - 52-pin connector Overview Of Control Modules

V2 - Fresh air blower Climatic (Manual Climate Control) / Heater Overview Diagrams

(132) - Ground connection 3 (in engine compartment wiring harness)

(376) - Ground connection 11 (in main wiring harness)

(602) - Ground connection in left front footwell Locations

(655) - Ground connection on left headlamp Locations

(B397) - Comfort system CAN bus high connection 1 (in main wiring harness)

(B406) - Comfort system CAN bus low connection 1 (in main wiring harness)

Previous Diagram 21/6 (Tracks 57-70)
