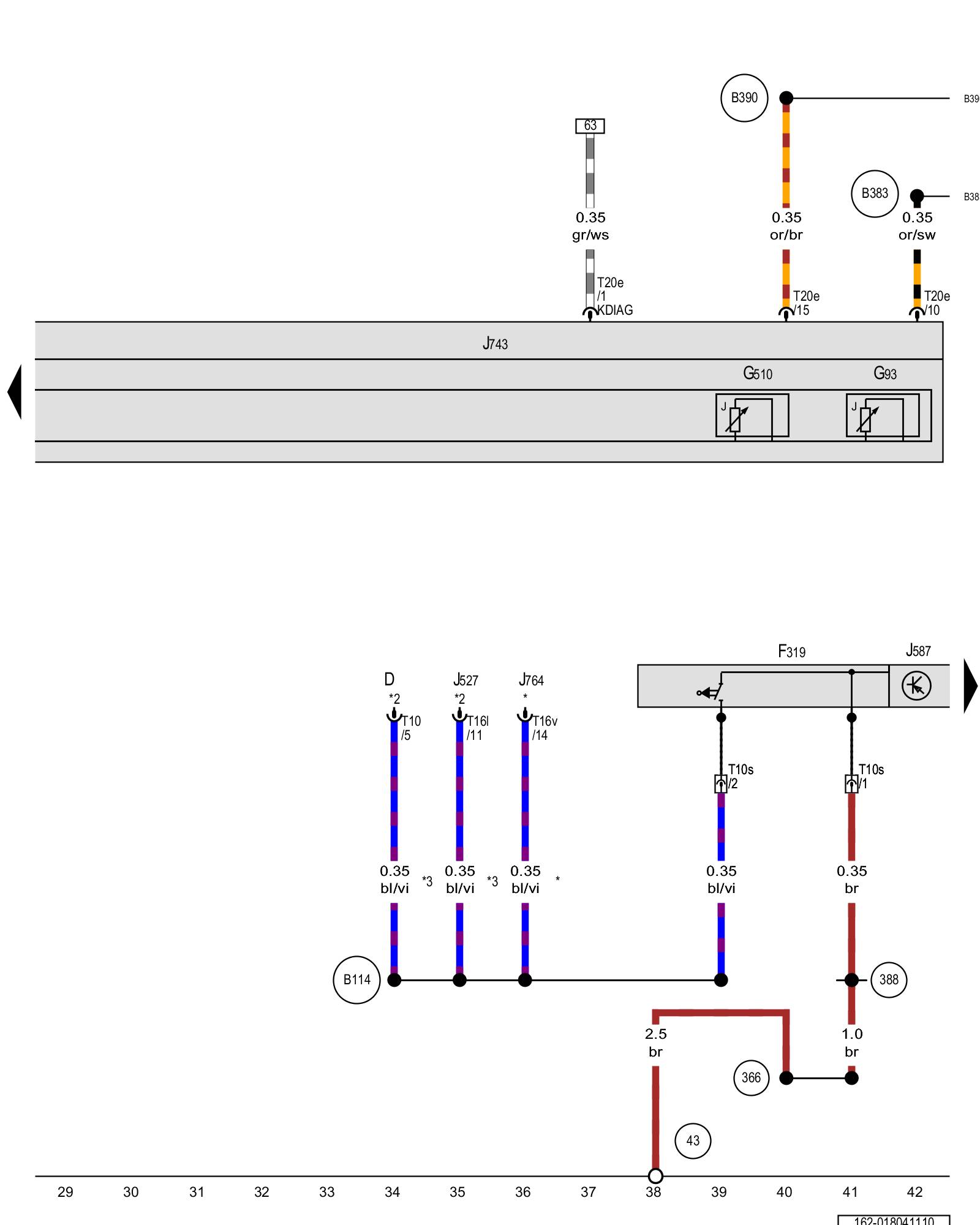

Diagram 18/4 (Tracks 29-42)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Selector lever sensor system control module, DSG transmission Mechatronic





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

D - Ignition/starter switch

F319 - Selector lever park position lock switch Selector Mechanism Assembly Overview Tiptronic Switch -F189- /Selector Lever -E313- and Selector Lever Park Position Lock Switch -F319-

G93 - Transmission fluid temperature sensor Locations

G510 - Temperature sensor in control module Locations

J527 - Steering column electronics control module Overview Of Control Modules Steering Column Electronics Control Module -J527-

J587 - Selector lever sensor system control module Selector Mechanism Assembly Overview

J743 - DSG transmission Mechatronic Overview Of Control Modules Connector Views

J764 - Electronic steering column lock control module Overview Of Control Modules Electronic Steering Column Lock Control Module -J764-

T10 - 10-pin connector

T10s - 10-pin connector

T16l - 16-pin connector

T16v - 16-pin connector

T20e - 20-pin connector

(43) - Ground connection on A-pillar, lower right Locations

(366) - Ground connection 1 (in main wiring harness)

(388) - Ground connection 23 (in main wiring harness)

(B114) - Lock switch connection (in interior wiring harness)

(B383) - Powertrain CAN bus high connection 1 (in main wiring harness)

(B390) - Powertrain CAN bus low connection 1 (in main wiring harness)

* - only for vehicles with access/start authorization system

*2 - Depending on equipment

*3 - Only for vehicles without access/start authorization system

Previous Diagram 18/3 (Tracks 15-28)

Next Diagram 18/5 (Tracks 43-56)
