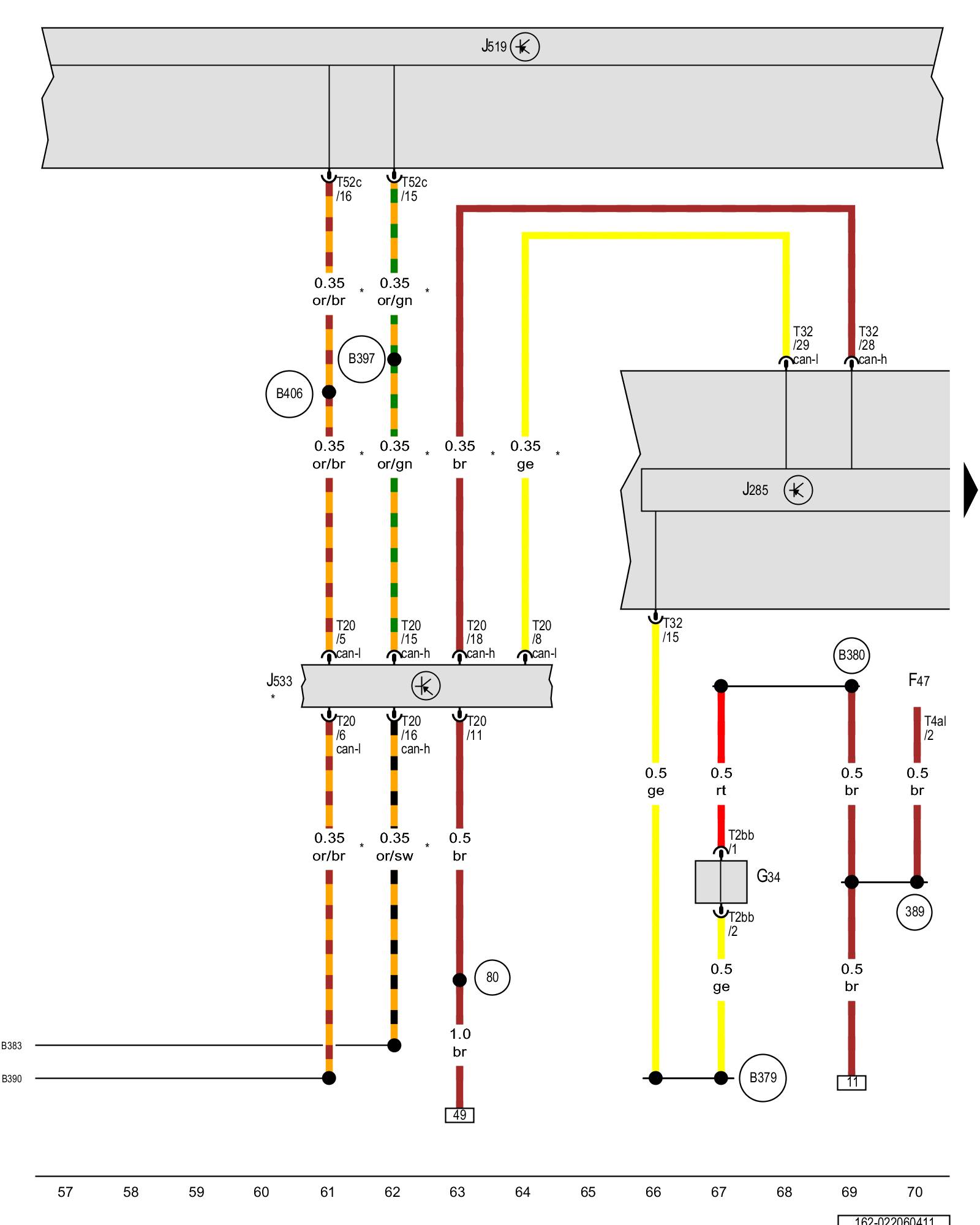

Diagram 22/6 (Tracks 57-70)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Left front brake pad wear sensor, Instrument cluster control module, Vehicle electrical system control module, Data bus on board diagnostic interface





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

F47 - Brake pedal switch Locations Locations

G34 - Left front brake pad wear sensor

J285 - Instrument cluster control module Overview Of Control Modules

J519 - Vehicle electrical system control module Overview Of Control Modules

J533 - Data bus on board diagnostic interface, in the left footwell, near the center console Overview Of Control Modules

T2bb - Double connector

T4al - 4-pin connector

T20 - 20-pin connector

T32 - 32-pin connector

T52c - 52-pin connector Overview Of Control Modules

(80) - Ground connection 1 (in instrument cluster wiring harness)

(389) - Ground connection 24 (in main wiring harness)

(B379) - Brake wear indicator connection 1 (in main wiring harness)

(B380) - Brake wear indicator connection 2 (in main wiring harness)

(B383) - Powertrain CAN bus high connection 1 (in main wiring harness)

(B390) - Powertrain CAN bus low connection 1 (in main wiring harness)

(B397) - Comfort system CAN bus high connection 1 (in main wiring harness)

(B406) - Comfort system CAN bus low connection 1 (in main wiring harness)

* - only for vehicles with High equipment (AW1)
