Diagram 23/6 (Tracks 57-70)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions

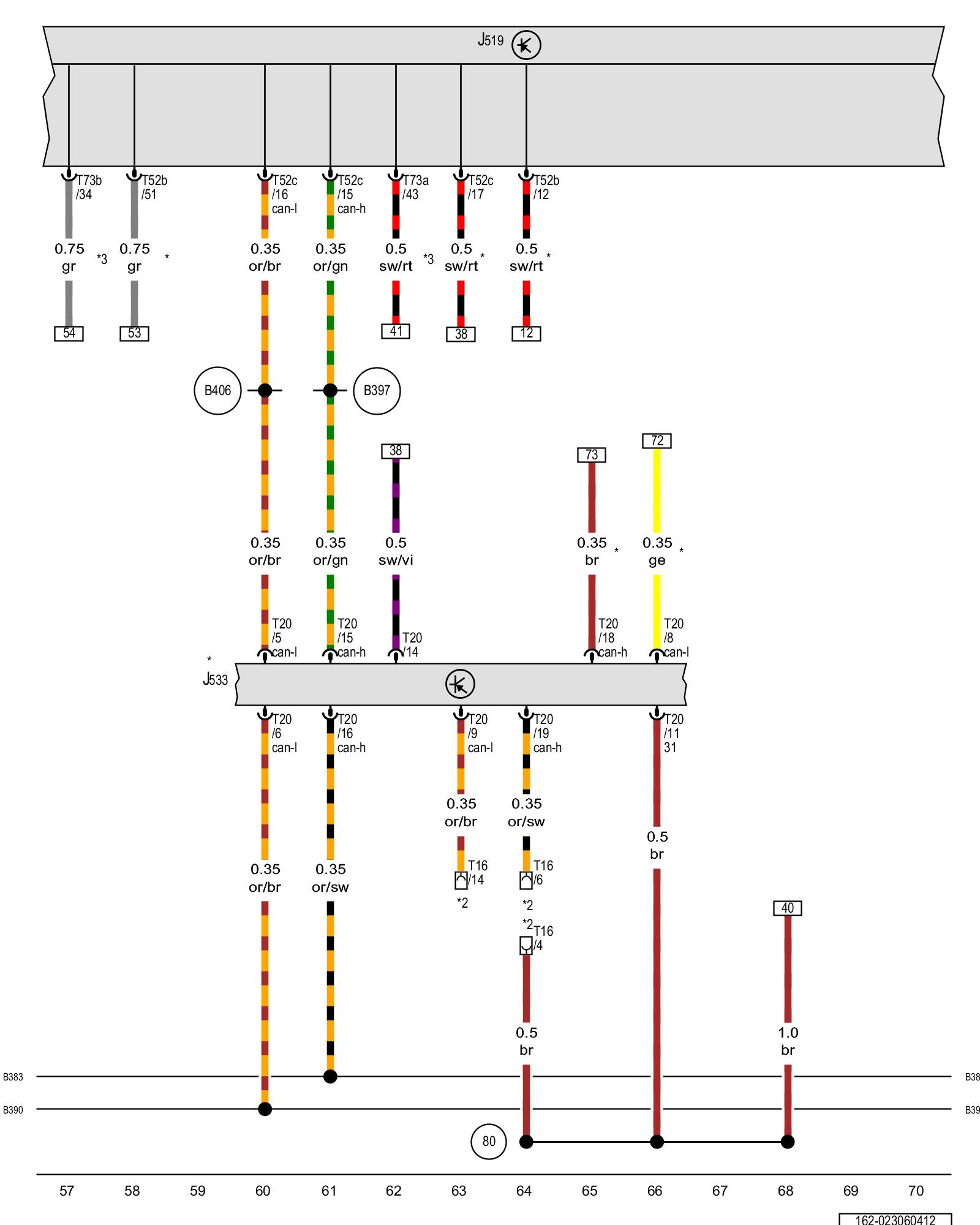

Vehicle electrical system control module, Data bus on board diagnostic interface





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

J519 - Vehicle electrical system control module Overview Of Control Modules

J533 - Data bus on board diagnostic interface, in the left footwell, near the center console Overview Of Control Modules

T16 - 16-pin connector Overview Of Connector Stations and Connectors

T20 - 20-pin connector

T52b - 52-pin connector Overview Of Control Modules

T52c - 52-pin connector Overview Of Control Modules

T73a - 73-pin connector Overview Of Control Modules

T73b - 73-pin connector Overview Of Control Modules

(80) - Ground connection 1 (in instrument cluster wiring harness)

(B383) - Powertrain CAN bus high connection 1 (in main wiring harness)

(B390) - Powertrain CAN bus low connection 1 (in main wiring harness)

(B397) - Comfort system CAN bus high connection 1 (in main wiring harness)

(B406) - Comfort system CAN bus low connection 1 (in main wiring harness)

* - only for vehicles with High equipment (AW1)

*2 - Diagnostic connector

*3 - only for vehicles with Low equipment (AW0)

Previous Diagram 23/5 (Tracks 43-56)

Next Diagram 23/7 (Tracks 71-84)
