Diagram 79/5 (Tracks 43-56)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions

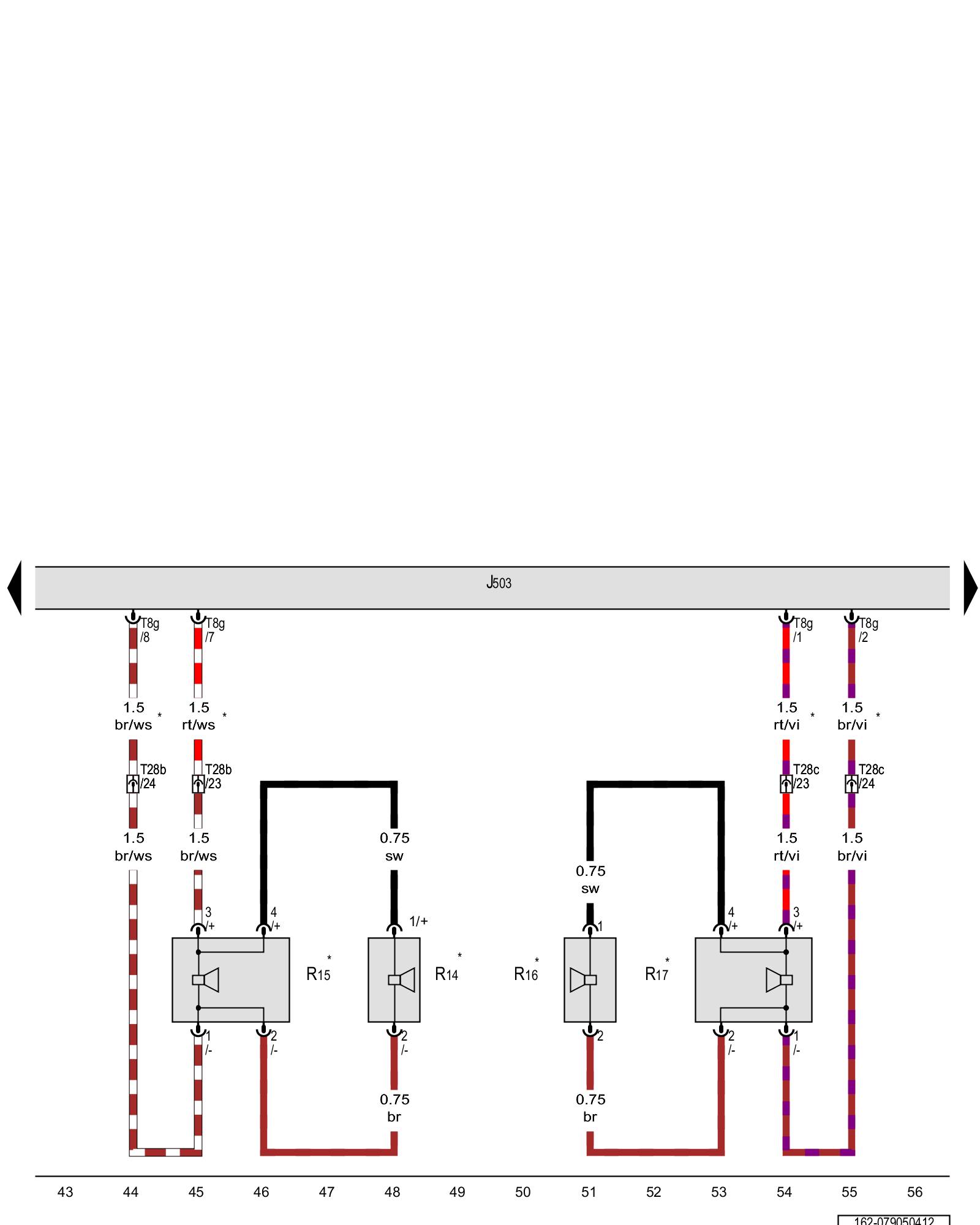

Radio/navigation display unit control module, Left rear treble speaker, Left rear bass speaker, Right rear treble speaker, Right rear bass speaker





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

J503 - Radio/navigation display unit control module Locations Overview Of Control Modules

R14 - Left rear treble speaker Locations

R15 - Left rear bass speaker Locations

R16 - Right rear treble speaker Locations

R17 - Right rear bass speaker Locations

T8g - 8-pin connector

T28b - 28-pin connector Overview Of Connector Stations and Connectors

T28c - 28-pin connector Overview Of Connector Stations and Connectors

* - Depending on equipment

Previous Diagram 79/4 (Tracks 29-42)

Next Diagram 79/6 (Tracks 57-70)
