Diagram 77/6 (Tracks 57-70)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions

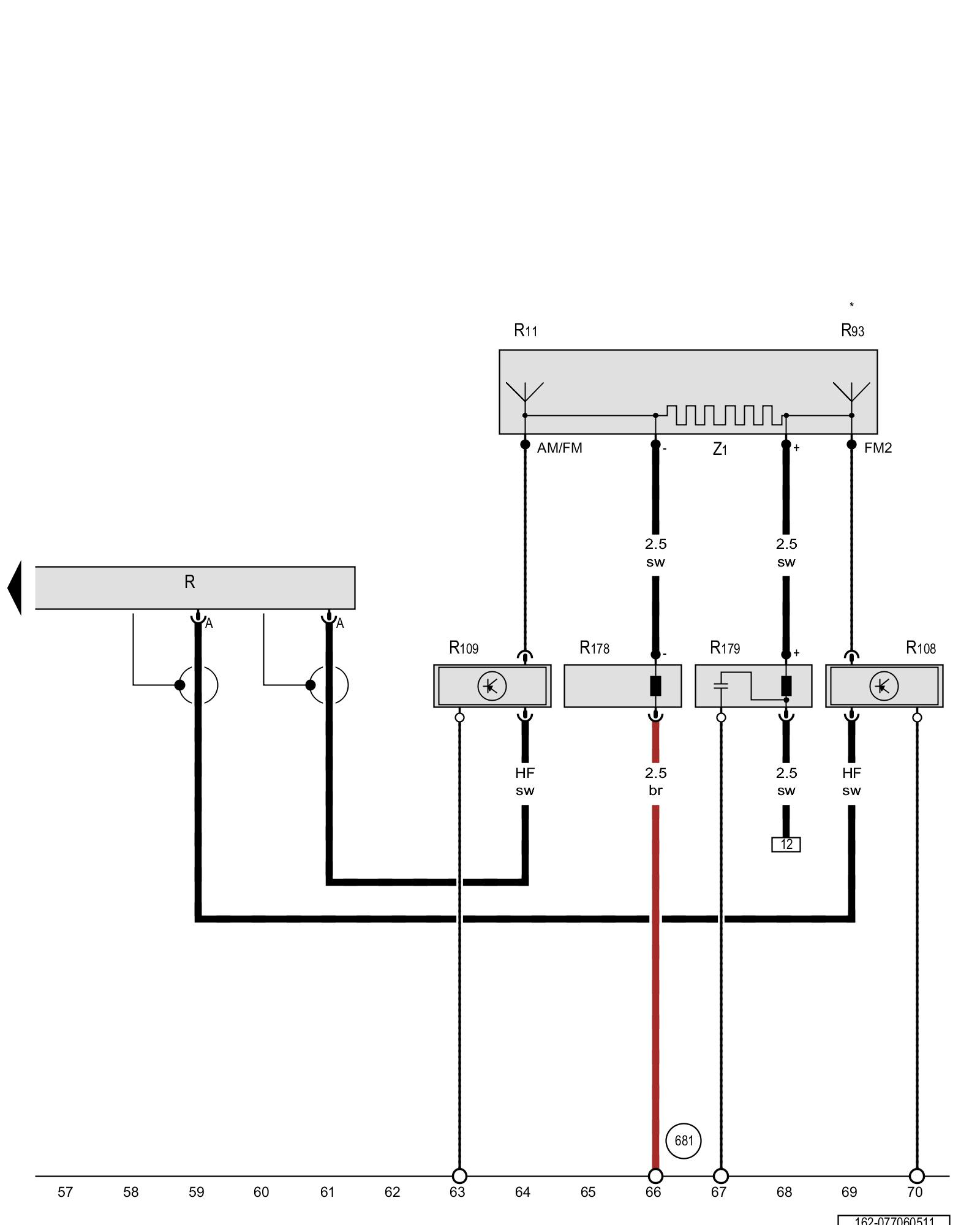

Radio, Antenna, Radio antenna 2, Left antenna module, Right antenna module, Rear window defogger





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

R - Radio Overview Of Control Modules Component Locations Component Locations Locations

R11 - Antenna Locations Component Locations

R93 - Radio antenna 2 Locations Component Locations

R108 - Left antenna module

R109 - Right antenna module

R178 - FM frequency filter in negative wire

R179 - FM frequency filter in positive wire

Z1 - Rear window defogger

(681) - Ground connection 1 in right rear side panel Locations

* - Depending on equipment

Previous Diagram 77/5 (Tracks 43-56)
