Diagram 78/5 (Tracks 43-56)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions

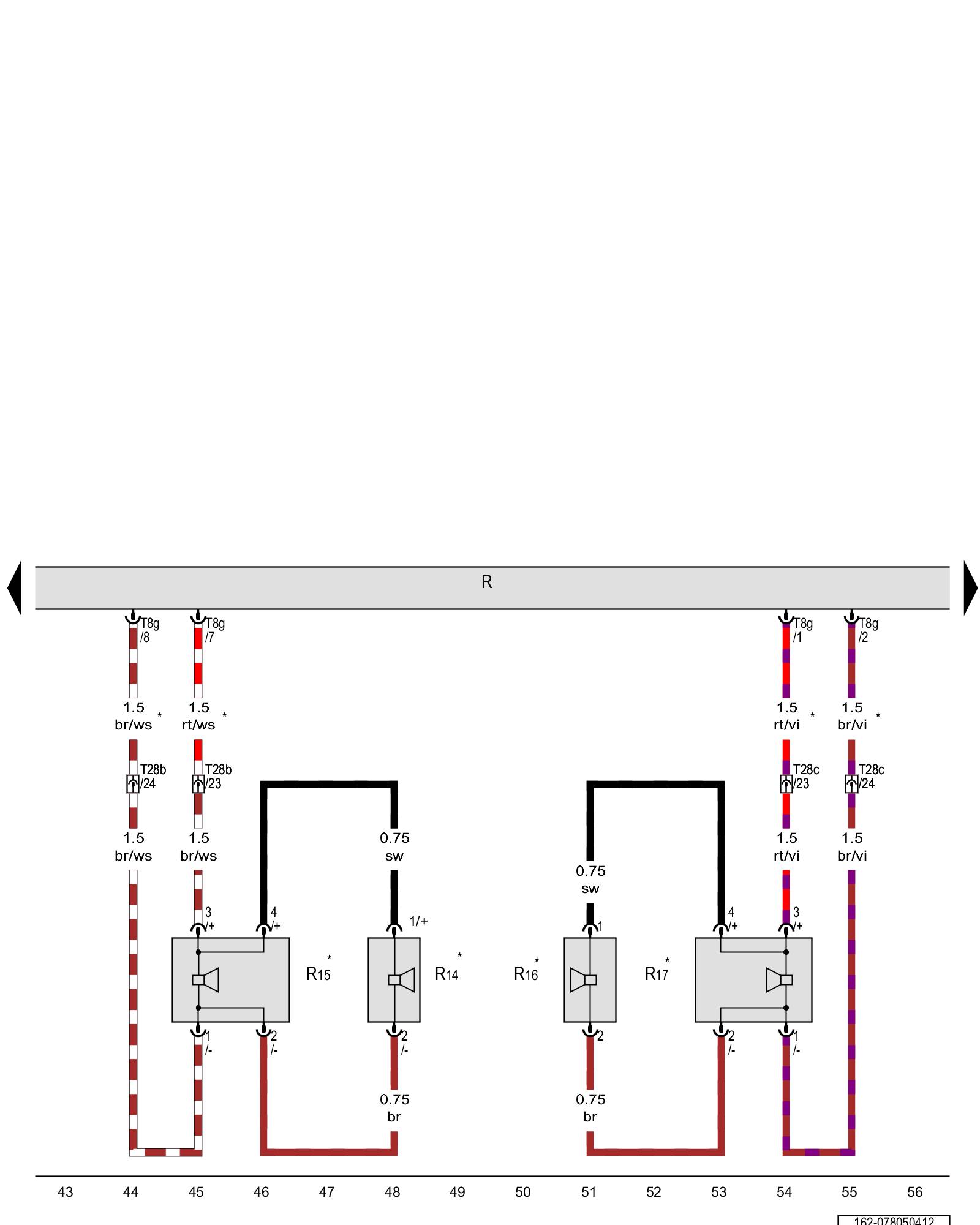

Radio, Left rear treble speaker, Left rear bass speaker, Right rear treble speaker, Right rear bass speaker





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

R - Radio Component Locations Component Locations Locations Overview Of Control Modules

R14 - Left rear treble speaker Locations

R15 - Left rear bass speaker Locations

R16 - Right rear treble speaker Locations

R17 - Right rear bass speaker Locations

T8g - 8-pin connector

T28b - 28-pin connector Overview Of Connector Stations and Connectors

T28c - 28-pin connector Overview Of Connector Stations and Connectors

* - Depending on equipment

Previous Diagram 78/4 (Tracks 29-42)

Next Diagram 78/6 (Tracks 57-70)
