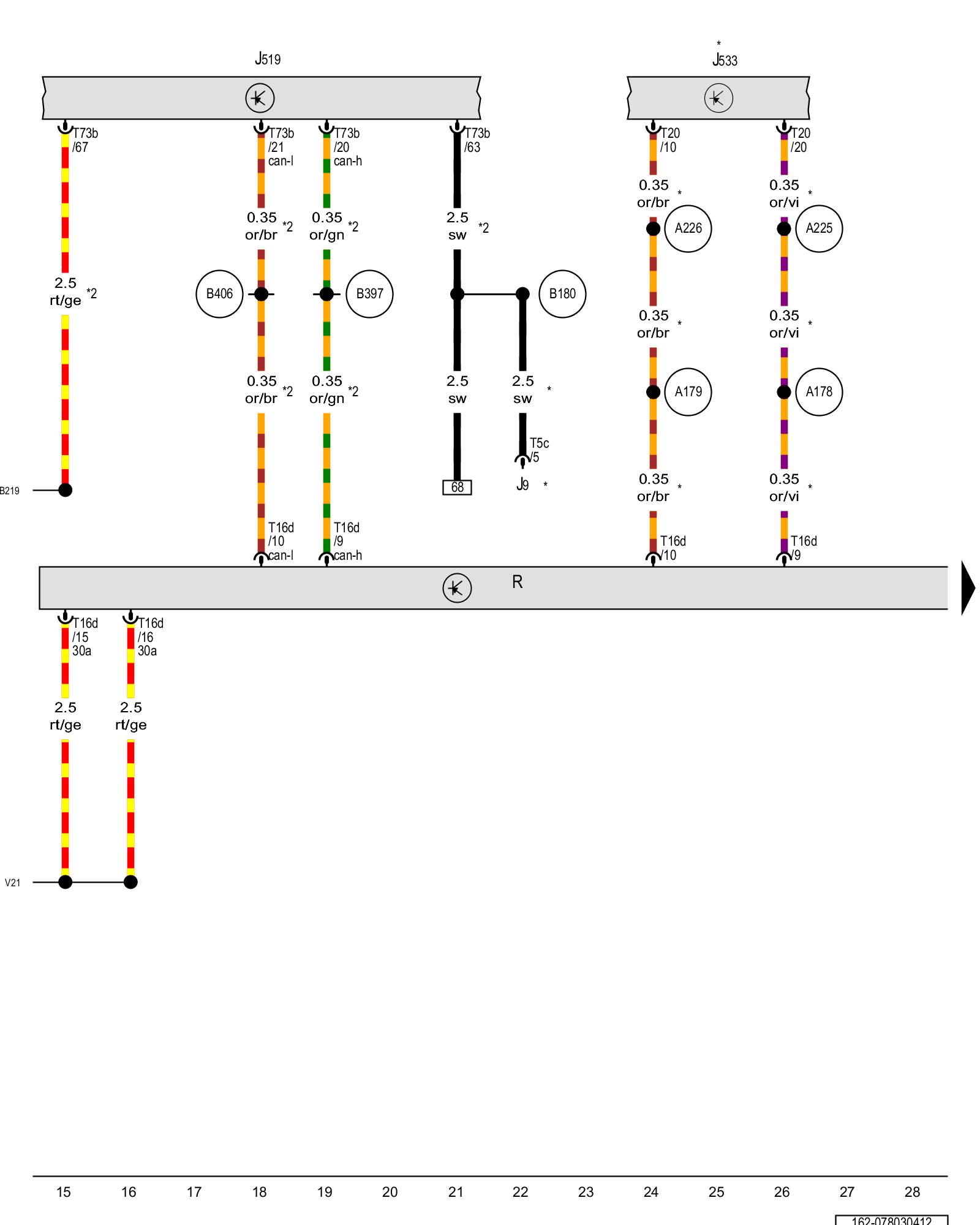

Diagram 78/3 (Tracks 15-28)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Vehicle electrical system control module, Data bus on board diagnostic interface, Radio





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

J9 - Rear window defogger relay Overview Of Relay Carrier

J519 - Vehicle electrical system control module Overview Of Control Modules

J533 - Data bus on board diagnostic interface Overview Of Control Modules

R - Radio Component Locations Component Locations Locations Overview Of Control Modules

T5c - 5-pin connector

T16d - 16-pin connector

T20 - 20-pin connector

T73b - 73-pin connector Overview Of Control Modules

(A178) - Infotainment CAN bus high connection (in instrument panel wiring harness)

(A179) - Infotainment CAN bus low connection (in instrument panel wiring harness)

(A225) - Infotainment CAN bus high connection 2 (in instrument panel wiring harness)

(A226) - Infotainment CAN bus low connection 2 (in instrument panel wiring harness)

(B180) - Rear window defogger connection (in interior wiring harness)

(B219) - Positive connection 4 (30a) (in interior wiring harness)

(B397) - Comfort system CAN bus high connection 1 (in main wiring harness)

(B406) - Comfort system CAN bus low connection 1 (in main wiring harness)

(V21) - Positive connection (30) (in wiring radio/amplifier wiring harness)

* - only for vehicles with High equipment (AW1)

*2 - only for vehicles with Low equipment (AW0)

Previous Diagram 78/2 (Tracks 1-14)

Next Diagram 78/4 (Tracks 29-42)
