Diagram 24/5 (Tracks 43-56)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


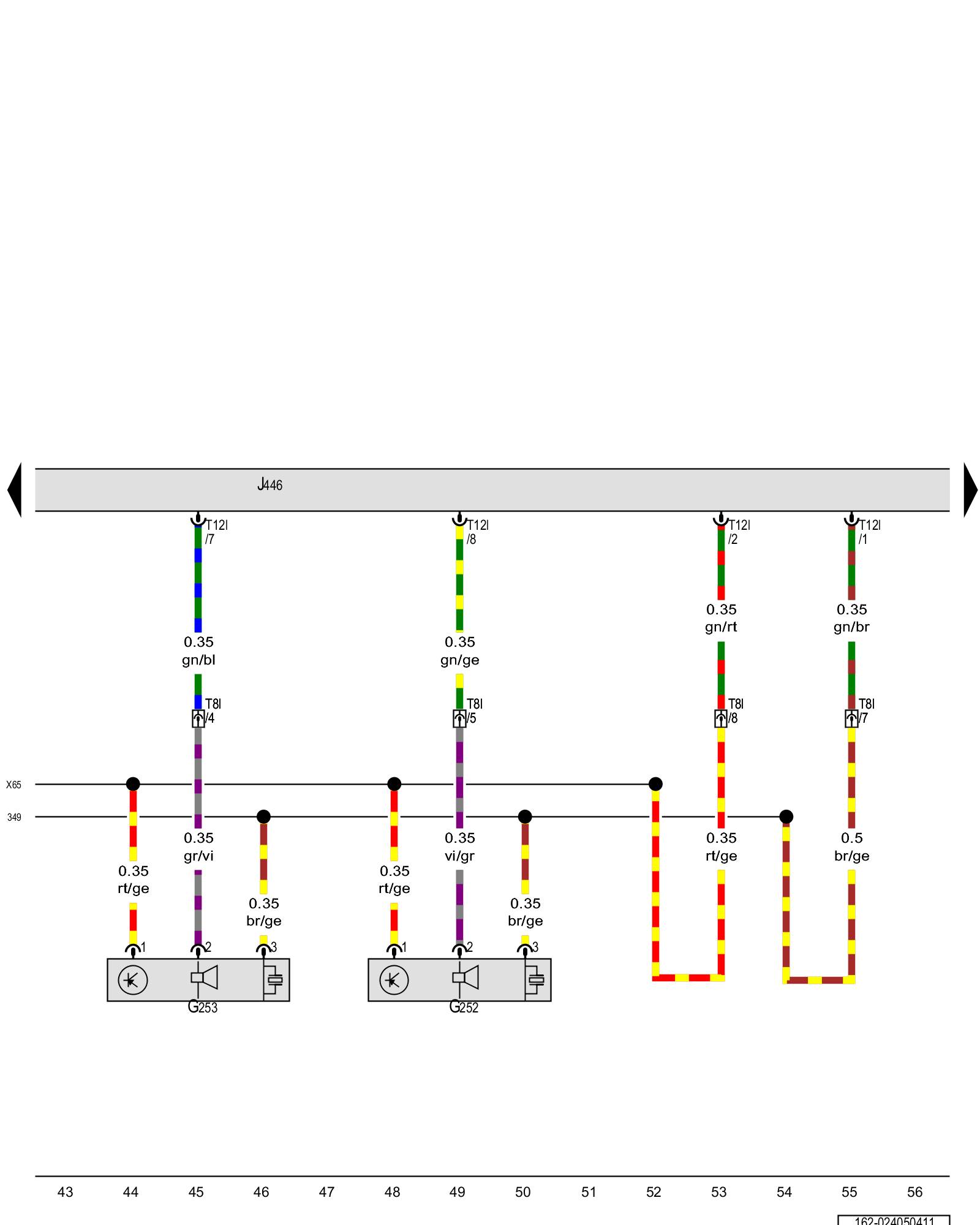

Right front parking aid sensor, Right front center parking aid sensor, Parking aid control module





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

G252 - Right front parking aid sensor Diagrams

G253 - Right front center parking aid sensor Diagrams

J446 - Parking aid control module Overview Of Control Modules Diagrams

T8l - 8-pin connector Overview Of Connector Stations and Connectors

T12l - 12-pin connector

(349) - Horn ground connection (in front bumper wiring harness)

(X65) - Parking aid connection (in front bumper wiring harness)

Previous Diagram 24/4 (Tracks 29-42)

Next Diagram 24/6 (Tracks 57-70)
