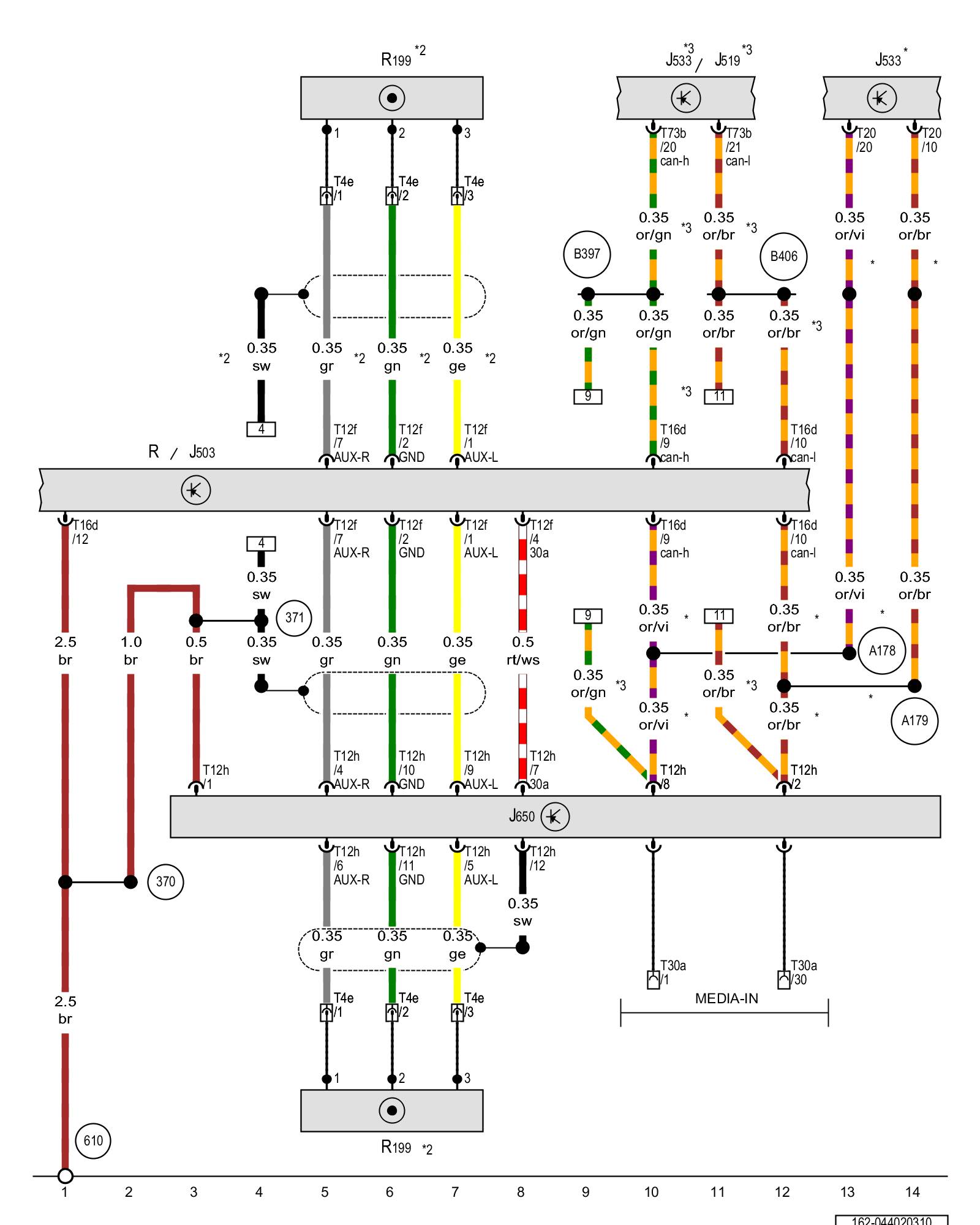

Diagram 44/2 (Tracks 1-14)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Radio/navigation display unit control module, Vehicle electrical system control module, Multimedia system control module, Radio, External audio source connection





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

J503 - Radio/navigation display unit control module Overview Of Control Modules Locations

J519 - Vehicle electrical system control module Overview Of Control Modules

J533 - Data bus on board diagnostic interface Overview Of Control Modules

J650 - Multimedia system control module Overview Of Control Modules Locations

R - Radio Overview Of Control Modules Component Locations Component Locations Locations

R199 - External audio source connection Locations Component Locations

T4e - 4-pin connector

T12f - 12-pin connector

T12h - 12-pin connector

T16d - 16-pin connector

T20 - 20-pin connector

T30a - 30-pin connector

T73b - 73-pin connector

(370) - Ground connection 5 (in main wiring harness)

(371) - Ground connection 6 (in main wiring harness)

(610) - Audio ground connection under front center console Locations

(A178) - Infotainment CAN bus high connection (in instrument panel wiring harness)

(A179) - Infotainment CAN bus low connection (in instrument panel wiring harness)

(B397) - Comfort system CAN bus high connection 1 (in main wiring harness)

(B406) - Comfort system CAN bus low connection 1 (in main wiring harness)

* - only for vehicles with High equipment (AW1)

*2 - Depending on equipment

*3 - only for vehicles with Low equipment (AW0)
