Transmission Fluid Temperature Sensor -G93- Transmission Input Speed Sensor -G182- Output Speed Sensor -G195-






Transmission Systems - Connector Views

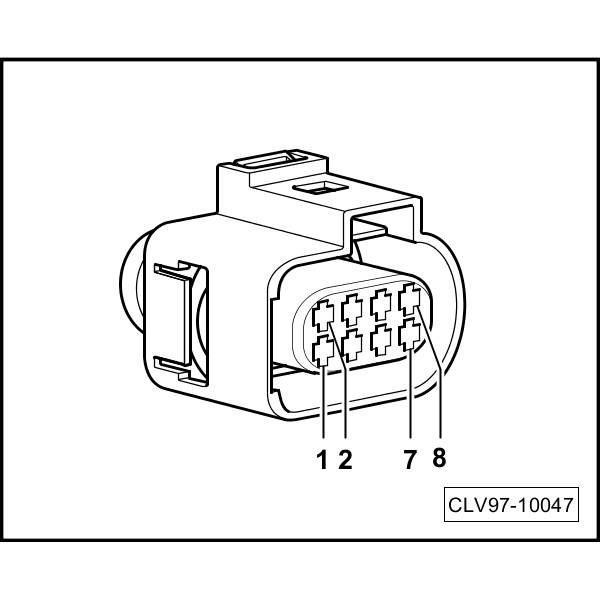

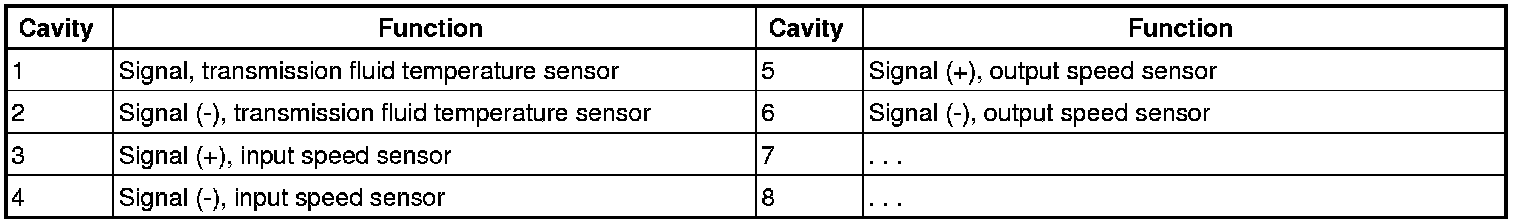

Transmission fluid temperature sensor -G93- and Transmission input speed sensor -G182- and Transmission output speed sensor -G195-



09G Transmission
