Parking Assist Control Module
Parking Assist Control Module
Parking Aid System
Parking aid control module -J446-

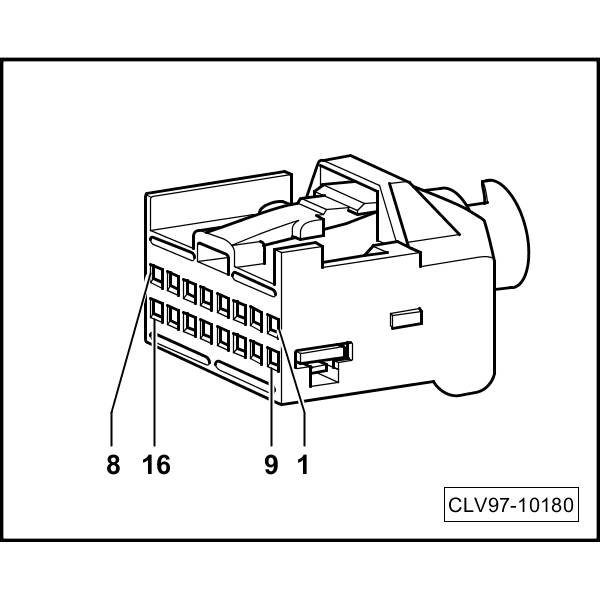

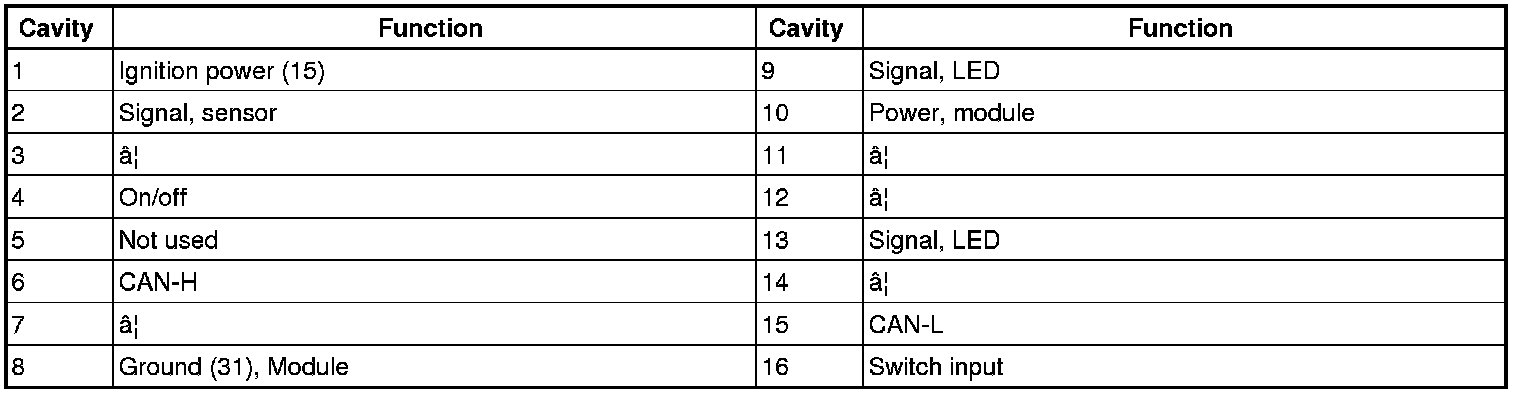

J446_A16 pins

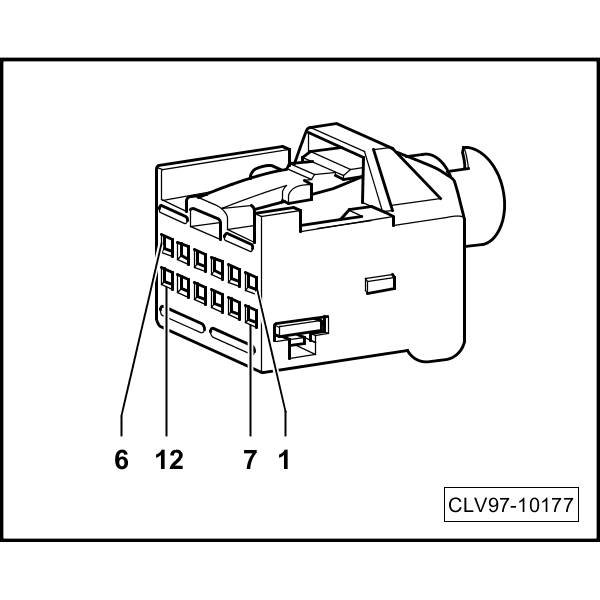

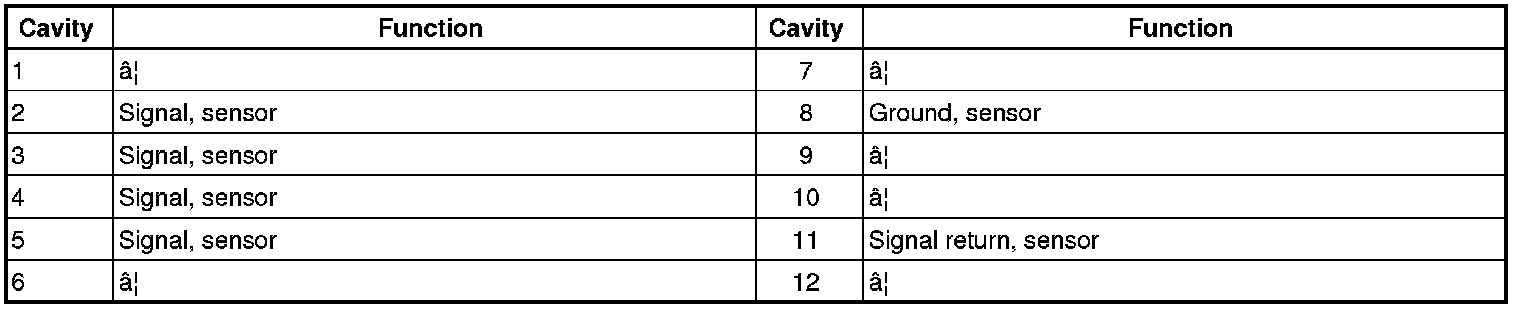

J446_B12 pins

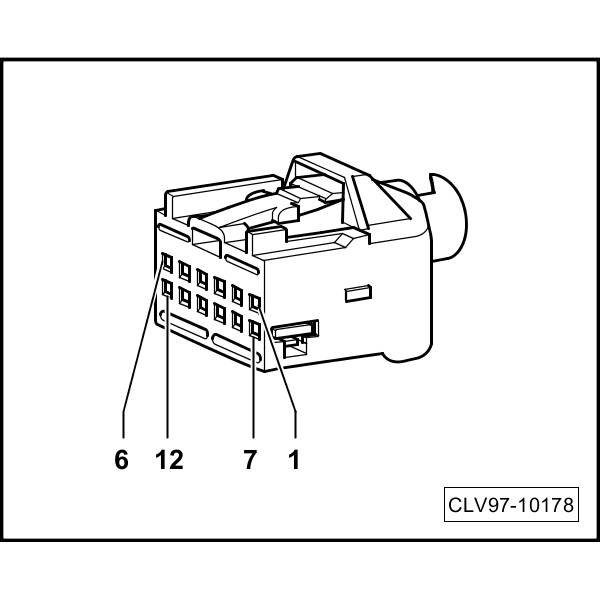

J446_C12 pins
