Brake System Vacuum Pump (V192)

Brake System Vacuum Pump (V192)

Only on gasoline vehicles with a DSG transmission and without a hydraulic brake booster

Removing

Component location of brake system vacuum pump is located on DSG transmission at front in direction of travel.

It is not possible to service the brake system vacuum pump. If there is a malfunction, replace brake system vacuum pump.

• The illustrations show the brake system vacuum pump horizontally. It is installed vertically on other engine/transmission combinations.

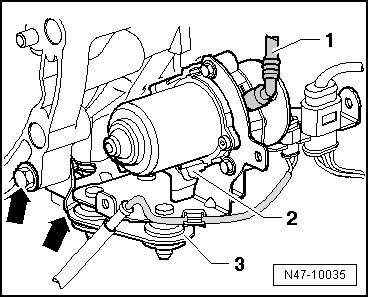

- Disconnect vacuum line- 1 - from brake system vacuum pump.






- Release and disconnect the harness connector - 2 - for the brake system vacuum pump.

- Unclip the wiring harnesses and lines from the bracket - 3 -.

- Unscrew the bracket bolts - arrows - - 3 -.

- Remove bracket - 2 - and - 3 - using the brake system vacuum pump.

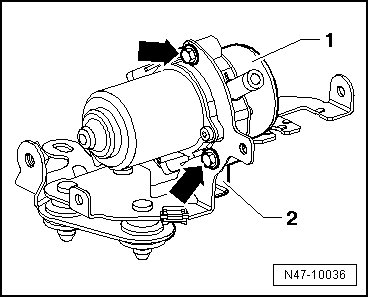

- Then unscrew - arrows - brake system vacuum pump - 1 - from bracket - 2 -.






Installing






Install in reverse order of removal. Note the following:

Installed location of the brake system vacuum pump ground resistance

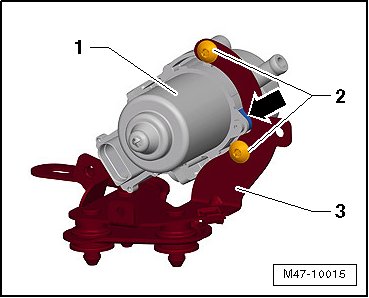

- Brake system vacuum pump - 1 - must be positioned with the tab - arrow - in the bracket opening - 3 -.

- Use bolts to tighten down the brake system vacuum pump - 1 - - 2 -.

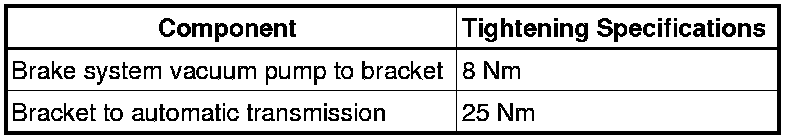

Tightening Specifications
