Home >> Volkswagen >> 2012 >> Jetta GLI (162) L4-2.0L Turbo (CCTA) >> Repair and Diagnosis >> Brakes and Traction Control >> Power Brake Assist >> Vacuum Pump >> Service and Repair >> Brake Booster Vacuum Pump Overview >> TDI

TDI






Brake Booster Vacuum Pump Overview

Must not be disassembled.

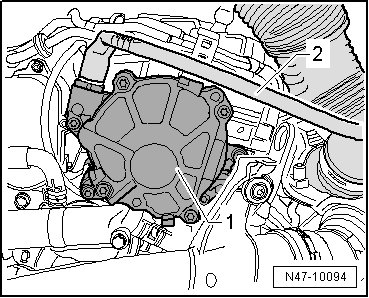

Vacuum pump - 1 -.

Vacuum hose to brake booster - 2 - with check-valve.

- Vacuum pump, removing and installing.
