Parking Brake Lever Overview

Parking Brake Lever Overview

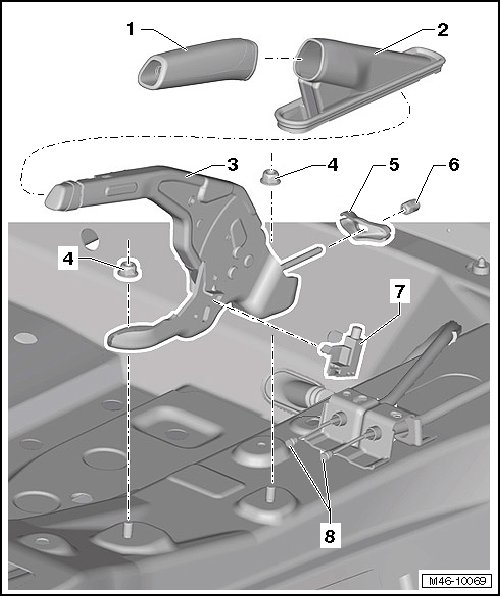

1 Parking Brake Lever Handle

• Removing and installing, refer to => [ Parking Brake Lever Trim ] Parking Brake Lever Trim.

• Do not reuse the handle for the parking brake lever.

2 Trim For Parking Brake Lever

• Removing and installing, refer to => [ Parking Brake Lever Trim ] Parking Brake Lever Trim.

3 Parking Brake Lever

• Remove center console before removing.

4 Hex Nut

• 20 Nm

• Quantity: 2

5 Compensator

6 Adjustment Nut

• Parking Brake with Disc Brakes, adjusting, refer to=> [ Parking Brake, Adjusting, with Disc Brakes ] Parking Brake, Adjusting, with Disc Brakes.

• Parking Brake with Drum Brakes, adjusting, refer to=> [ Parking Brake, Adjusting, with Drum Brake ] Parking Brake, Adjusting, with Drum Brake.

7 Parking Brake Switch (F9)

8 Parking Brake Cables

• Removing and installing with disc brakes, refer to => [ Parking Brake Cable, Disc Brake ] Parking Brake Cable, Disc Brake.

• Removing and installing with drum brakes, refer to=> [ Parking Brake Cable, Drum Brake ] Parking Brake Cable, Drum Brake.
