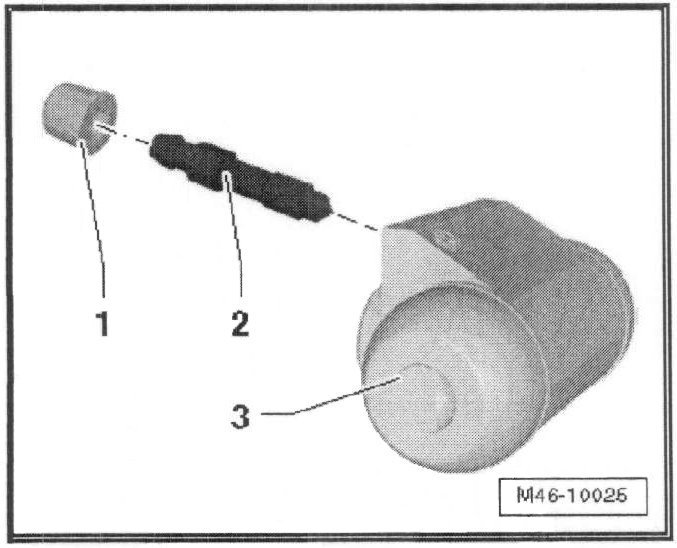

Wheel Brake Cylinder Overview

Wheel Brake Cylinder Overview






1. Dust cap; push onto bleed valve

2. Bleed valve, 8 Nm; apply a thin coat of assembly paste (G 052 150 A2) to the threads before screwing in.

3. Wheel brake cylinder


• Replace the brake cylinder if there are leaks or damage.
