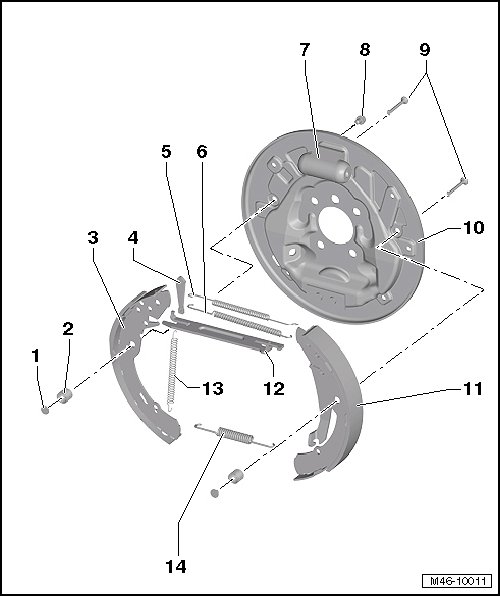

Drum Brake Component Overview

Drum Brake Component Overview






1 Spring Plate

• Removing and installing, refer to => [ Brake Shoes ] Brake Shoes.

2 Compression Spring

• Removing and installing, refer to => [ Brake Shoes ] Brake Shoes.

3 Brake Shoe

• Removing and installing, refer to => [ Brake Shoes ] Brake Shoes.

• For the correct allocation, refer to the Electronic Parts Catalog.

4 Wedge

• Removing and installing, refer to => [ Brake Shoes ] Brake Shoes.

5 Upper Return Spring

• Removing and installing, refer to => [ Brake Shoes ] Brake Shoes.

6 Contact Spring

• Removing and installing, refer to => [ Brake Shoes ] Brake Shoes.

7 Wheel Brake Cylinder

• Checking for leaks, refer to => [ Wheel Brake Cylinder, Checking for Leaks ] Testing and Inspection.

• Removing and installing, refer to => [ Brake Cylinder ] Brake Cylinder.

8 Bolt

• 8 Nm

9 Spring Dowel Sleeve

• Removing and installing, refer to => [ Brake Shoes ] Brake Shoes.

10 Brake Carrier

• Removing and installing, refer to => [ Brake Carrier ] Brake Carrier.

• Grease contact areas using solid lubricant (G 000 650).

11 Brake Shoe With Parking Brake Lever

• Removing and installing, refer to => [ Brake Shoes ] Brake Shoes.

• Adjusting the parking brake, refer to => [ Parking Brake, Adjusting, with Drum Brake ] Parking Brake, Adjusting, with Drum Brake.

• For the correct allocation, refer to the Electronic Parts Catalog.

12 Pressure Rod

• Removing and installing, refer to => [ Brake Shoes ] Brake Shoes.

• Grease contact areas using solid lubricant (G 000 650).

13 Pull-Spring

• Removing and installing, refer to => [ Brake Shoes ] Brake Shoes.

14 Lower Return Spring

• Removing and installing, refer to => [ Brake Shoes ] Brake Shoes.

• Grease contact areas using solid lubricant (G 000 650).
