Brake Pedal Mounting Bracket

Brake Pedal Mounting Bracket

Removing

- Disconnect brake pedal from brake booster. Refer to=> [ Brake Pedal and Brake Booster, Separating and Connecting ] Brake Pedal and Brake Booster, Separating and Connecting.

- Remove the threaded connection - 1 - between the brake booster and the bracket.






- Remove the threaded connection - 2 - between the bulkhead and the bracket.

- Remove the bracket and pedal assembly.

Installing

Install in reverse order of removal. Note the following:

Follow the tightening sequence

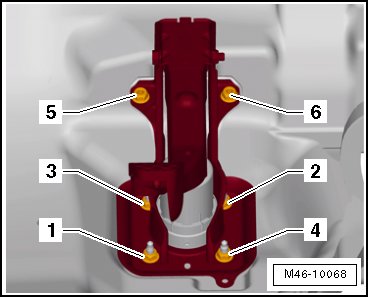

- Tighten bolts - 1 - through - 6 - in the same sequence as illustrated.

- Clip the brake pedal to the brake booster, refer to => [ Brake Pedal and Brake Booster, Separating and Connecting ] Brake Pedal and Brake Booster, Separating and Connecting.

Tightening Specification
