Diagram 22/7 (Tracks 71-84)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions

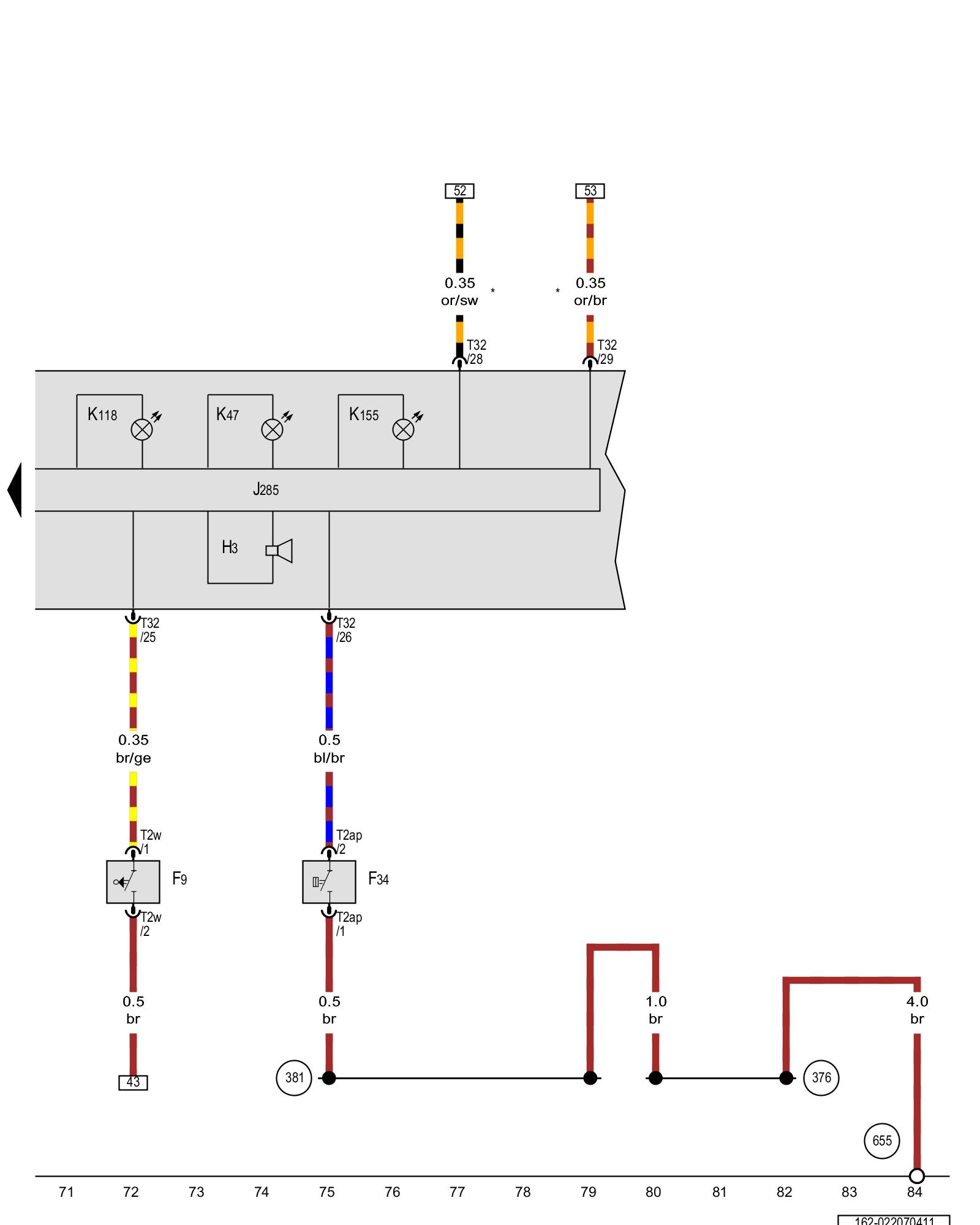

Parking brake indicator lamp switch, Brake fluid level warning switch, Warning buzzer and tone, Instrument cluster control module, ABS indicator lamp, Brake system indicator lamp, ASR/ESP indicator lamp





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

F9 - Parking brake indicator lamp switch

F34 - Brake fluid level warning switch Locations

H3 - Warning buzzer and tone

J285 - Instrument cluster control module Overview Of Control Modules

K47 - ABS indicator lamp Locations

K118 - Brake system indicator lamp Locations

K155 - ASR/ESP indicator lamp Locations

T2ap - Double connector

T2w - Double connector

T32 - 32-pin connector

(376) - Ground connection 11 (in main wiring harness)

(381) - Ground connection 16 (in main wiring harness)

(655) - Ground connection on left headlamp Locations

* - only for vehicles with Low equipment (AW0)

Previous Diagram 22/6 (Tracks 57-70)
